Vmade’s Desktop CO2 Laser Marking Machine is available in 10W, 30W, 60W & 100W models. By increasing the power of your CO2 Laser machine, you increase the speed at which that machine will mark or cut your material. This CO2 Laser machine has the capability to mark or engrave a wide range of organic materials, including wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.

Features of Desktop CO2 Laser Marking Machine

1.High reliability,long continuous operation time,clear and complete printing.

2.Supported by rich software.enable to collect and manufacture various labels,non-contact processing.

3.Ensure original precision of the surface of work piece to the max limit.

4.Suitable for engraving on various materials.long time preserve.simple installation and convenient.

5.The optical system is fully sealed,it can prevent the dust entering laser body and reduce the equipment failure rate.

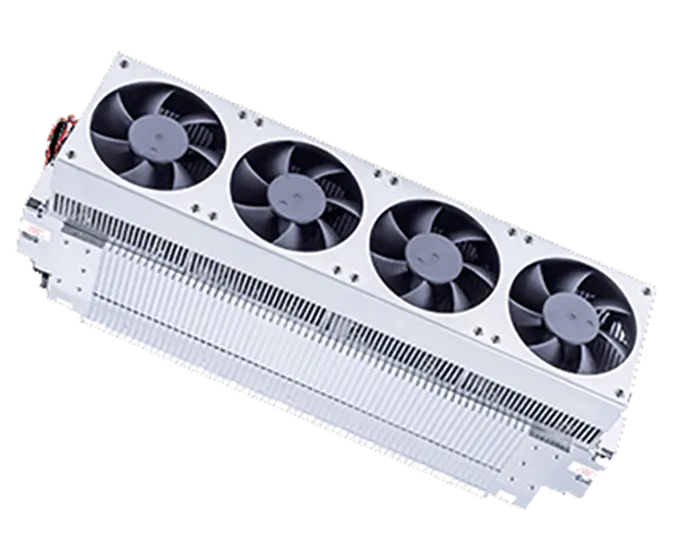

Laser Module

Laser Module

DAVI/ ACCESS/ COHERENT as your reference.

20w/ 30w/ 55w laser power as your requirement.

Stable operation, lifespan of more than 100, 00 hours.

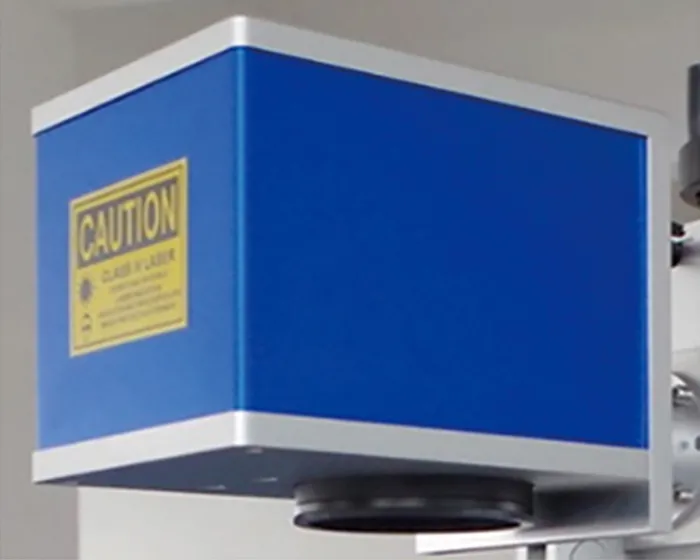

Galvo Scan Head

Galvo Scan Head

Newest digitagalvo scanner head

Aperturesize16mm

Linearity>99.90%

Repeatability<8urad

Longterm drift over 8 hours

<0.5urad

Control Program

Control Program

The newest Genuine version

BJJCZcontrol board with

EZCAD control program

which is compatible with

win7/win8/win1032 and 64 bits

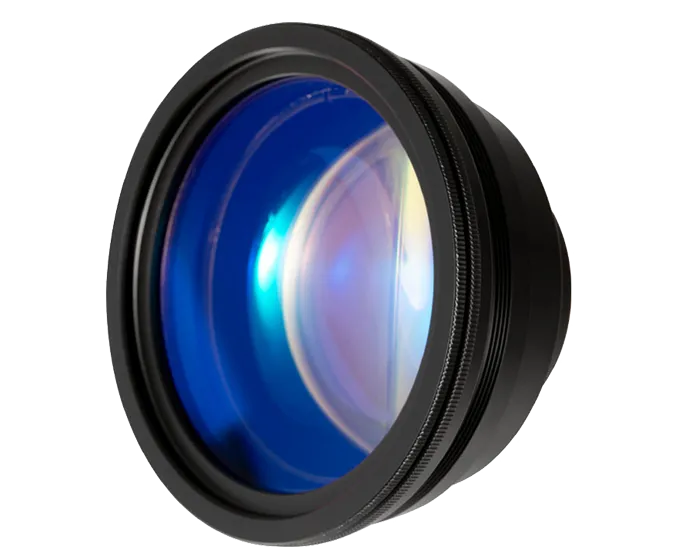

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

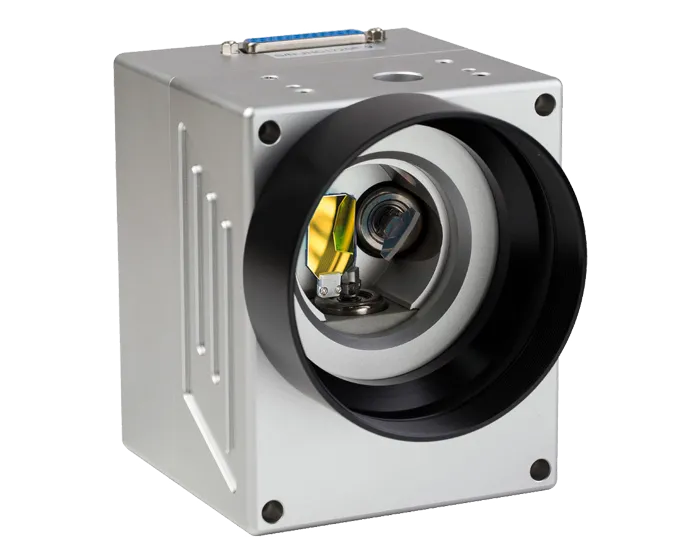

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus; Failed warning light ensure machine running correctly.

Technical Parameters

Machine TypeVLF-CO2-10W 30W 60W 100W
Laser Output Power10W 30w 60W 100W
Power stability(from cold start)guaranteed+/-5%
Laser beam qualityM2<1.2
Beam combination spot size2.5mm
Beam expanding spot size15mm
Reflection beam sopt size16mm
Wavelength10.60um
Control systemEZCAD work with win7/8/10
Focus methodDouble red dots
Cooling wayAir cooling
Working Area70*70mm-300*300mm
Linearity99.90%
long term drift over 8 hours<0.5urad
Repeated Accuracy<=8urad
Minimum Line Width0.015mm
Power Supply220V/50HZ or 110V /60HZ
Package size109*46*78cm
Gross weight90kgs
Go to download detailed information!

Desktop CO2 Laser Marking Machine

Application Industry


Desktop CO2 Laser Marking Machine Applications

Desktop CO2 Laser Marking Machine is Suitable for wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.

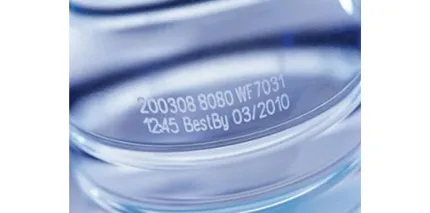

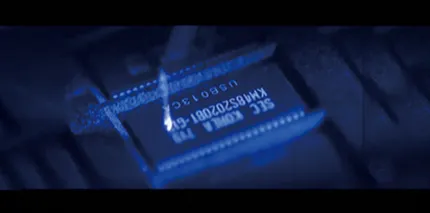

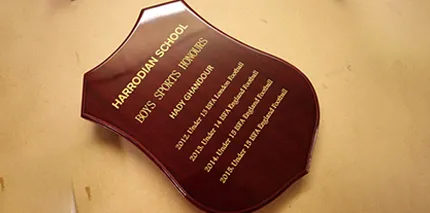

The following is a sample display.


Desktop CO2 Laser Marking Machine

Desktop CO2 Laser Marking Machine

Desktop CO2 Laser Marking Machine
