Pipe and Plate Fiber Laser Cutting Machine

LNR Series

Pipe and Plate Fiber Laser Cutting Machine

Inquire Now
Home / Products / Plate and Tube Laser Cutting Machine / LNR Series / Pipe and Plate Fiber Laser Cutting Machine

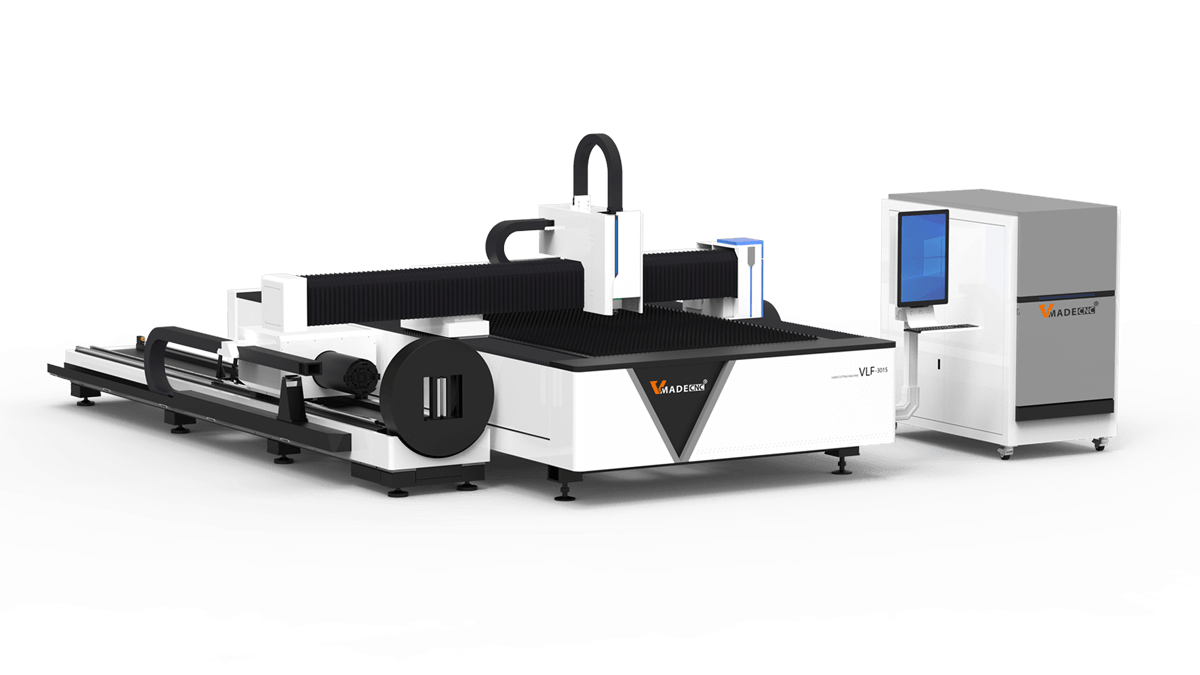

VLF1530 LNR 0fiber laser cutting machine as one classic model, widely used in many common areas of our life,

Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic

plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

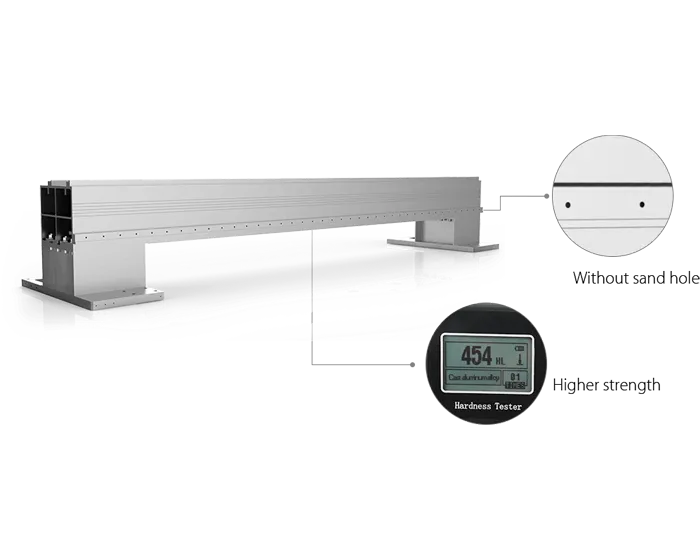

The Fourth Generation Aviation Aluminum Gantry

The Fourth Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Clamp Design

Clamp Design

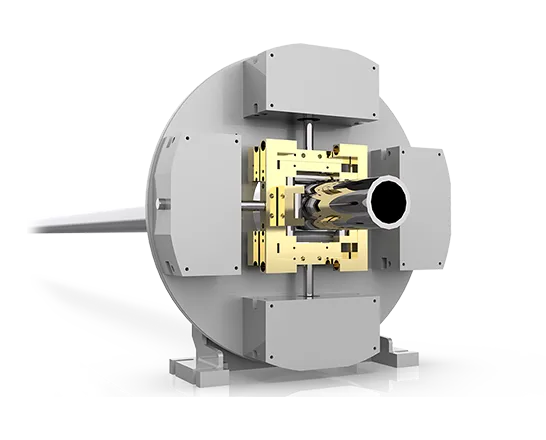

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

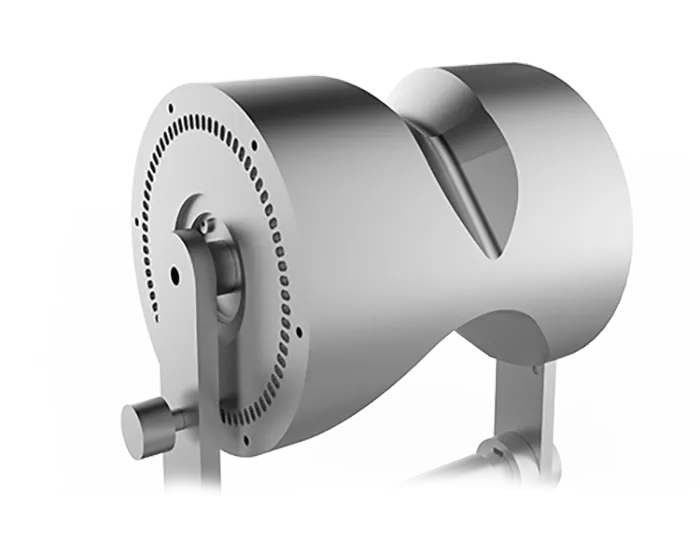

Fractional Automatic Support Installation

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

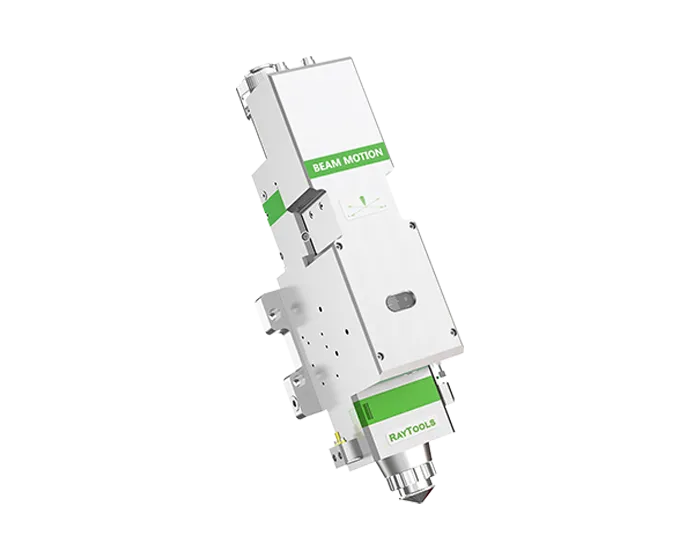

Without manual operation, it can focus automatically

Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

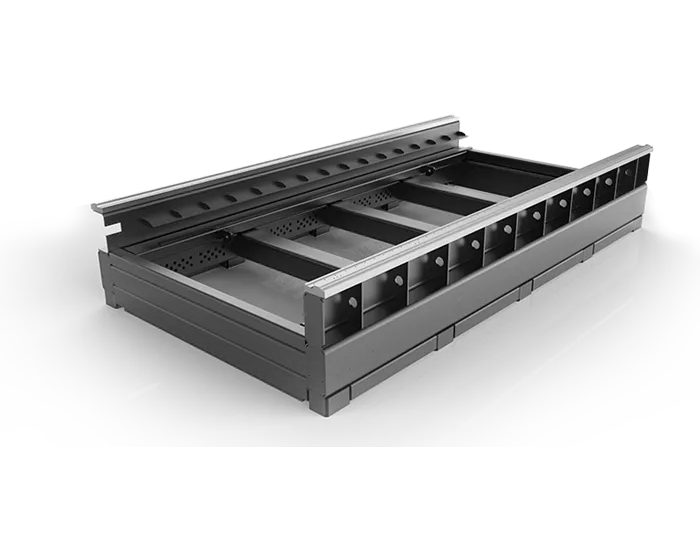

The Segmented Rectangular Tube Welded Bed

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

-High strength, stability, tensile strength, ensuring 20 years of use without distortion;

-Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.

Technical Parameters

Machine modelVLF1530LNR
Laser power1000W 2000W 3000W(Optional)
Dimensions5315*3930*1950mm
Working area3000mm x 1500mm
Repeat positioning accuracy±0.02mm
Maximum speed80m/min
Maximum acceleration1.0G
Specified voltage and frequency380V/50Hz/60Hz/60A

Application Industry

Since sheet and pipe integrated design, Industry adaptability of LF3015LNR has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc.

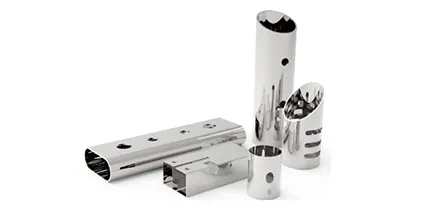

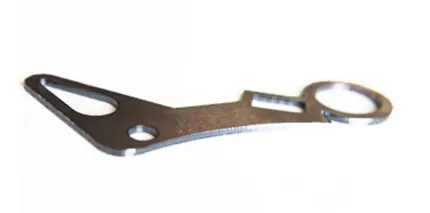

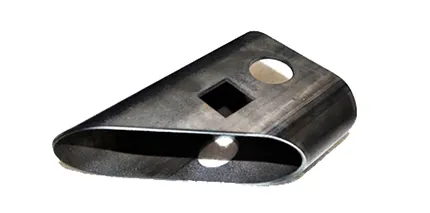

Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.

Pipe and Plate Fiber Laser Cutting Machine

Pipe and Plate Fiber Laser Cutting Machine

Pipe and Plate Fiber Laser Cutting Machine

Tags: Plate and Tube Laser Cutting Machine
