VLF3015GAR fiber laser metal cutting machine can carry up to8000W laser power, so cutting some light and exquisite sheet metal , it is a very good choice.

For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing,

usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy,

galvanized steel, aluminum-plating zinc plate, copper, and other metals.

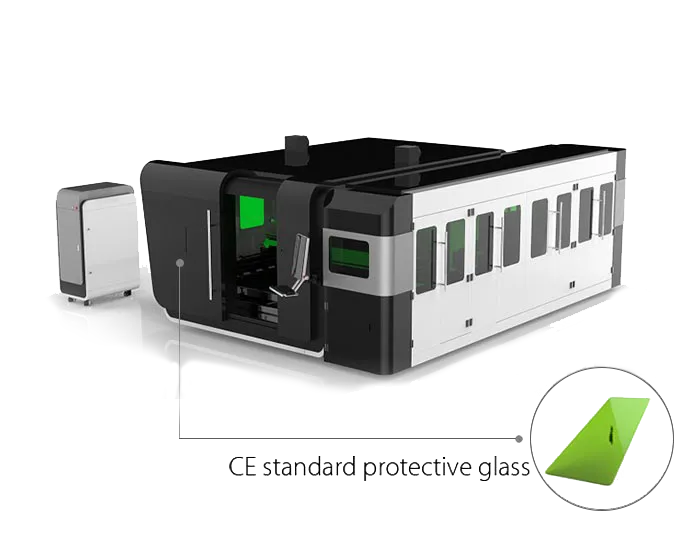

Safety and No Pollution

Safety and No Pollution

With a fully enclosed design;

The observation window adopts an European CE Standard laser protective glass;

The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

The weight of machine is 7500kg.

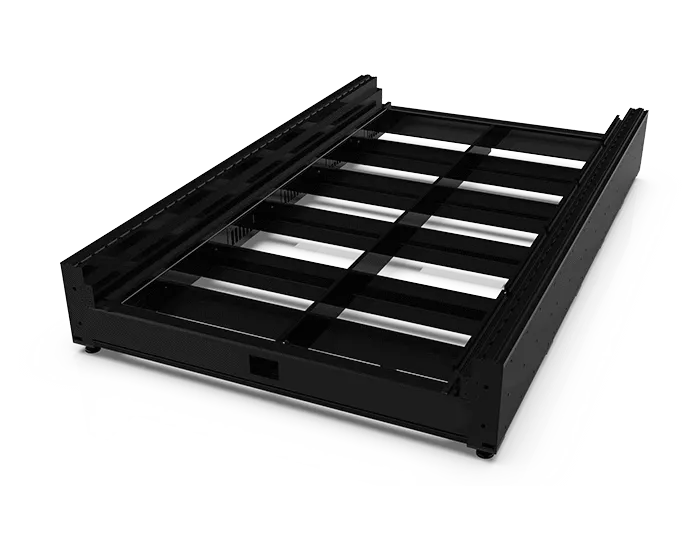

The Segmented Rectangular Tube Welded Bed

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

-High strength, stability, tensile strength, ensuring 20 years of use without distortion;

-Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

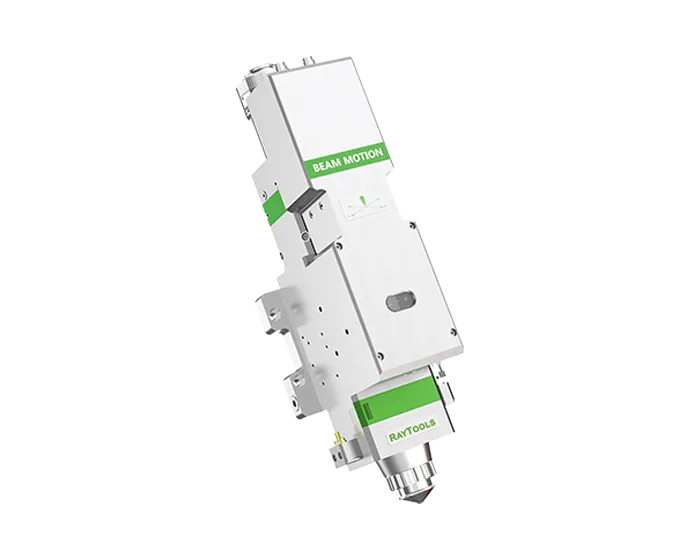

Auto Focus Laser Cutting Head

Auto Focus Laser Cutting Head

-Without Manual Focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

-Bigger Adjustment Range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

-Long Service Life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

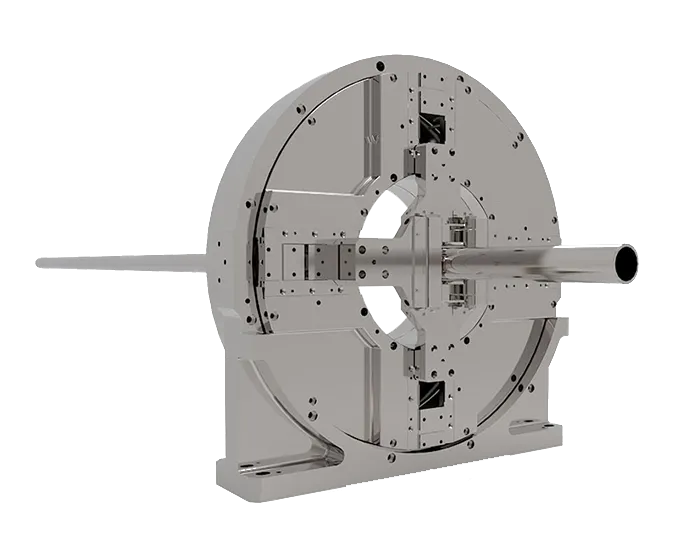

Clamp Design

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

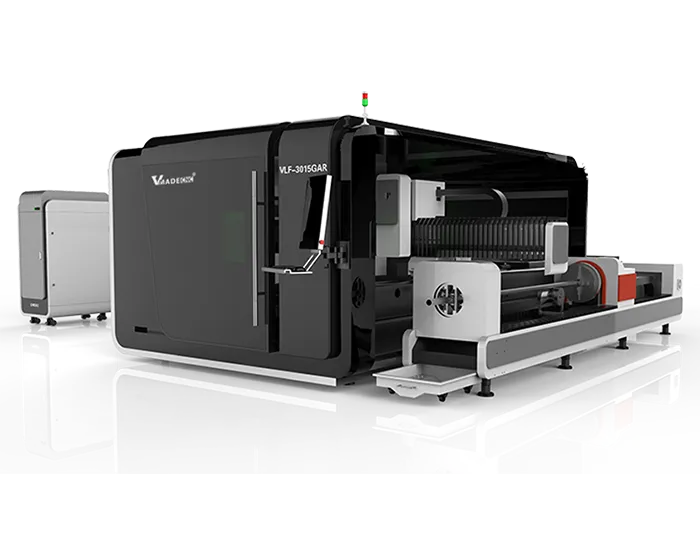

Dual Use and Cost-saving

Dual Use and Cost-saving

Vmade GR series fiber laser cutting machine can not only cut metal plates,but also metal pipes. It has many uses and can save the space of more than 50%,which effectively improve productivity.

Technical Parameters

Machine modelVLF1530GARVLF2040GARVLF2560GAR
Laser power1000W 2000W 3000W 4000W 6000W(Optional)
Dimensions9500*3760*2520mm11500*4260*2520mm14140*5015*2520mm
Working area3000mm*1500mm4000mm*2000mm6000mm*2500mm
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Max. acceleration1.5G
Voltage and frequency380V 50Hz/60HZ

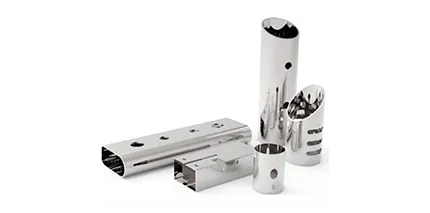

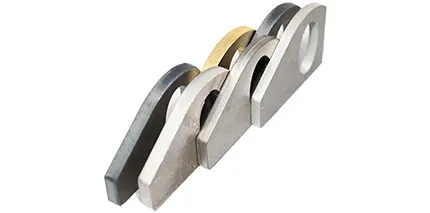

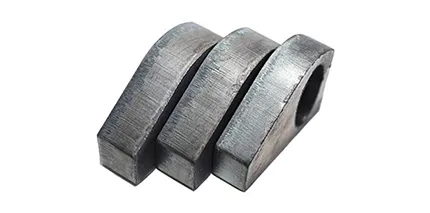

Application Industry

GAR fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
