How to Choose Best UV Laser Marking Machines

Choosing the right UV laser marking machine can be overwhelming, but with the right knowledge, you can make an informed decision. In this article, we will discuss the key factors you should consider when choosing the best UV laser marking machine for your needs.

1. Introduction

UV laser marking machines are a type of laser marking machine that use ultraviolet light to engrave or mark a wide range of materials, including plastics, glass, and metals. These machines offer high precision and accuracy, making them ideal for use in industries such as electronics, medical devices, and aerospace.


With so many UV laser marking machines available in the market, it can be difficult to choose the right one for your needs. In this article, we will provide you with a guide on how to choose the best UV laser marking machine.


2. What is a UV Laser Marking Machine?

A UV laser marking machine is a type of laser marking machine that uses a UV laser beam to create marks or engravings on a variety of materials. The laser beam vaporizes the material, leaving a permanent mark on the surface. UV laser marking machines are often used in applications where high precision and accuracy are required, such as in the medical, electronics, and aerospace industries.

3.The World of UV Lasers

Laser technology has been in use for marking materials for quite some time and one can say the market is mature to an extent. This assessment is based upon the fact that many versatile solutions are available to cater to industrial needs.

For instance, handheld laser markers are available for marking extremely heavy or large objects. Similarly, solutions that can integrate with a conveyor setup exist to facilitate production lines.

Within the laser, segment exists several technologies and are in use according to the benefits they offer. These benefits can range from the type of materials they can mark to the precision and sensitivity they offer. UV lasers are a sub-category of this domain.

The wavelength of UV laser light is around one-third (355 nm) of that of standard wavelength lasers (1064 nm). Moreover, the name “UV laser marker” comes from its wavelength being in the ultraviolet portion of the light spectrum.

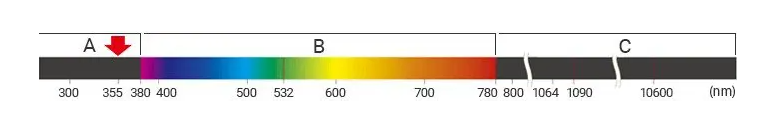

Wavelength of UV laser light

A: Ultraviolet range

B: Visible range

C: Infrared range

4.UV Laser in the Industry


The design of a UV laser allows it to be a practical solution for marking plastics and glass. Moreover, the UV laser machine can engrave a vast number of materials, from metals to paper. Following is a basic list of materials that these machines can engrave and mark.

UV laser common applications
  • Marking some metals

  • Engraving and marking of all plastics

  • Glass marking

  • Marking and engraving of some stones

  • Paper marking

  • Leather marking and graving

  • Marking on fruits

  • Marking on wood

  • Ceramic marking

  • Garment marking

5.How to Choose the best UV Laser Machine

When making the decision of selecting the aptest UV laser machine you need to consider a few basic characteristics of your selection process.

Type of Laser to Choose

Excimer Laser:

The excimer laser is another type of laser for UV laser engraving and is a gas laser. The wavelength of this laser depends on the type of gas mixture. Instead of a round beam, the shape is rectangular and offers a comparatively consistent intensity distribution over the area.

However, the intensity of the beam falls off sharply at the edges. Nonetheless, process details can be as small as a few microns, while the distance between focusing optics and workpiece can be as large as 50 to 100 mm.

Applications:

Excimer lasers are primarily in use by industries requiring extreme levels of precision. For instance, they are in use in microchip fabrication and manufacturing industries. Using a process known as photolithography, these devices help build millions of micro-level transistors on the surface of silicon substrates.

Similarly, the medical world finds its use as well. Organic compounds are good at absorbing this laser type. Hence they can easily micro-machine organic compounds and this makes them suitable for highly sensitive surgeries such as eye surgeries.

Solid-State Laser:

One technology is that of solid-state, Q-switched Nd: YAG laser. In these lasers, a special crystal changes the infrared 1064 nm wavelength to the ultraviolet 353 nm wavelength.

Consequently, these features allow for focusing the beam to spot sizes on the order of 10 µm. The high repetition rate and the small focused spot make these lasers well suited for machining on a micro-scale.

Applications:
  • Lasers below 1W are very popular today and can be commonly found. They sell separately and in combination with the so-called DIY engravers.

  • The 1 W – 3 W lasers (1000 – 3000 mW) category is a less common find. These lasers can cut wood, plywood, PVC, acryl, cardboard, PLA, ABS. However, the thickness of the plywood does not exceed 2-3 mm.

  • The 3 W – 6 W (3000 – 6000 mW) lasers have a strong fan following. These lasers are well suited for cutting plywood and wood 3.2 mm thick, and other materials of greater thickness.

Currently, manufacturers are exploring the 10 W (10000 mW) lasers range. Operating a laser has serious concerns as there are problems associated with heat dissipation.

Metal Vapor Laser:

The third type of UV laser is the metal vapor laser. The copper vapor laser is mainly used although vapors of several other metals can also be suitable. This kind of laser generates radiation at 511 nm and 578 nm wavelengths. Moreover, frequency mixing and doubling are in use to generate ultraviolet radiation with 255 nm, 271 nm, and 289 nm wavelength.

Applications:

Metal vapor laser engravers are more commonly known as copper vapor laser (CVL) engravers considering that the most common applications use copper vapors.

  • CVL can machine metals, diamond, silica, glass, silicon, ceramics, and many other materials that are difficult to machine by conventional techniques.

  • They excel at high-aspect-ratio drilling and slotting

  • Moreover, the very high peak power density removes the material either by vaporization or ablation resulting in minimal dross, splatter, or recasts material thus giving clean and precise machined features that do not require finishing operations.

  • Furthermore, the small amount of energy contained within the short pulses minimizes thermal effects.



6. Factors to Consider When Choosing a UV Laser Marking Machine

When choosing a UV laser marking machine, there are several factors to consider:


Power: The power of the laser is measured in watts and determines the speed and depth of the marking. Higher power lasers are able to mark deeper and faster, but also come at a higher cost.

Cost: The cost of a UV laser marking machine varies depending on the power, wavelength, and other features. It's important to choose a machine that fits within your budget while also meeting your requirements.

Maintenance and Service: Regular maintenance and service are important for the longevity and performance of the UV laser marking machine. It's important to choose a machine that is easy to maintain and has readily available spare parts. You should also consider the availability of technical support and service.

Beam Quality: The beam quality of the laser determines the sharpness and precision of the mark. Higher beam quality lasers produce sharper and more precise marks.

Marking Area: The marking area of the laser determines the size of the material that can be marked. Larger marking areas require more power and can be more expensive.


Here are the best marking and engraving machines selected for you:


How to Choose Best UV Laser Marking Machines

Conclusion:

In the coming years, the market for marking and engraving will be largely driven by laser technologies. Among the various options available, UV lasers will dominate due to their ability to work with sensitive or low-heat sustaining materials, and their high precision. Due to their versatility, UV laser engravers are becoming the preferred technology.

As mentioned earlier, it's important to understand the strengths and weaknesses of each technology. Similarly, it's essential to consider the benefits of UV laser marking machines, despite their relatively high price. These machines offer superior performance and maintenance-free operation, which more than justifies their cost.

FAQs

1. What materials can be marked with a UV laser marking machine?

UV laser marking machines can mark a wide range of materials, including plastics, glass, and metals.

2. What is the importance of software in UV laser marking machines?

Software is important for creating and customizing marks, as well as importing and exporting files in various formats.

3. How often should a UV laser marking machine be serviced?

Regular maintenance and service are important for the longevity and performance of the UV laser marking machine. The frequency of service depends on the usage and environment of the machine.

4. What is the cost range for UV laser marking machines?

The cost of a UV laser marking machine varies depending on the power, wavelength, and other features. They can range from a few thousand to tens of thousands of dollars.
