2.5D Fiber Laser Marking Machine

Inquire Now
4.9
(102)
$4,200.00
(Up To $8,400.00 for Top Version)
Home / Products / Laser Marking Machine / Fiber Series / 2.5D Fiber Laser Marking Machine

High Power Laser Cutting Machine

Vmadelaser : Best Laser Marker for Sale

Find the Right Laser Marking Machine Manufacturer in China.

High Quality Laser Marking Machine with Competitive Price. Source Laser Marking Machine from China Now!

High Power Laser Cutting Machine

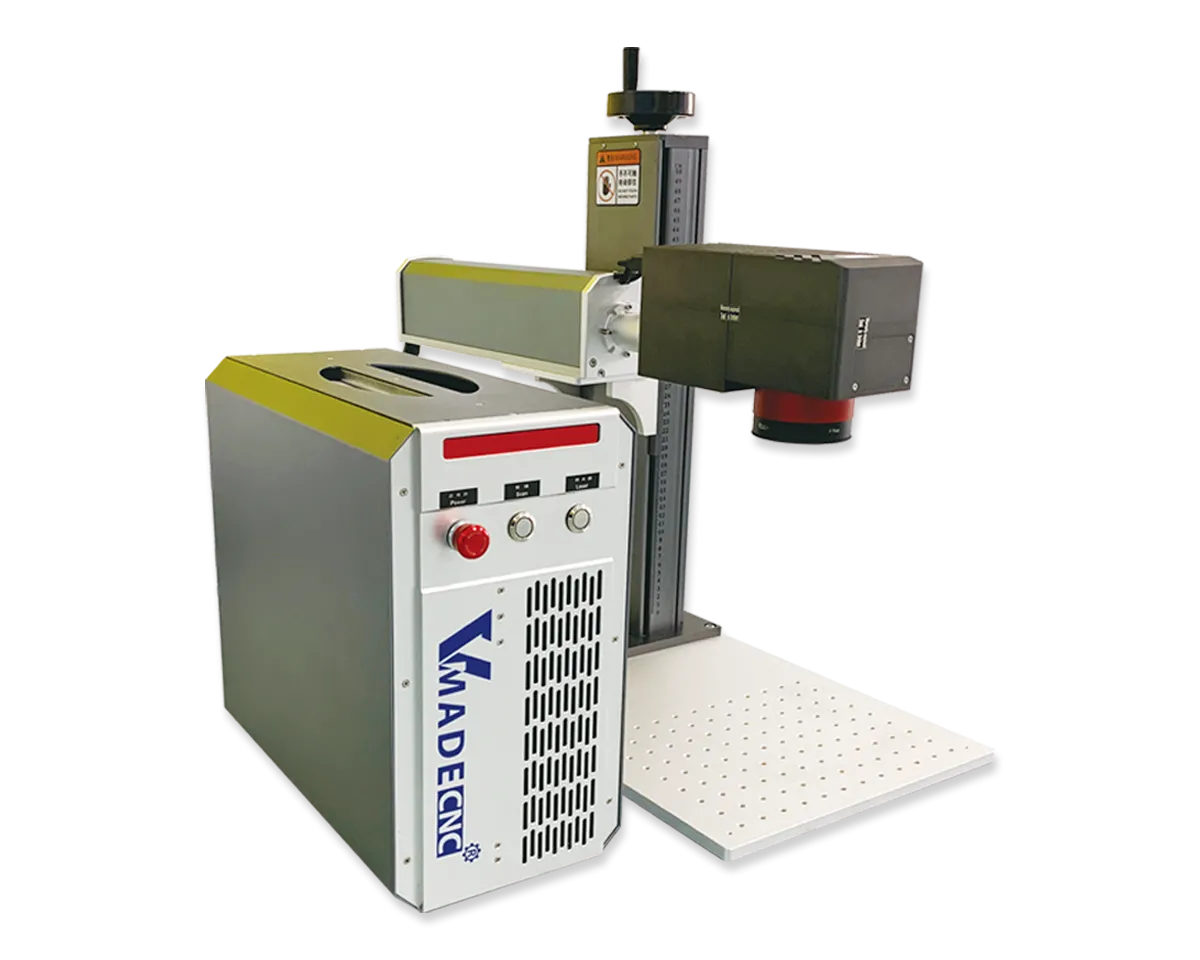

About 2.5D fiber laser marking engraving machine

2.5D fiber laser marking engraving machine is the upgrading system based on 2D laser. It comes with motorized Z-axis auto focus function and EZCAD 3.0 software for 3D relief engraving function. It is much more economic than 3D machine.



Why Is Deep Carving Suitable For Choosing 2.5D Laser Marking Machine?

Traditional 2D marking has inherent defects in deep engraving of the object surface. As the laser focus moves up during the engraving process, the laser energy acting on the actual surface of the object will drop sharply, which seriously affects the effect and efficiency of deep engraving. For the traditional deep engraving method, the lifting table is moved to a certain height at regular intervals during the engraving process to ensure that the laser surface is well focused. 2.5D machine for deep engraving processing does not have the above problems, which not only guarantees the effect, but also improves the efficiency, and at the same time saves the cost of the electric lifting table.


If you can't choose the suitable machine, please contact our engineers, we will serve you wholeheartedly!

DetailedInformation

DetailedInformation

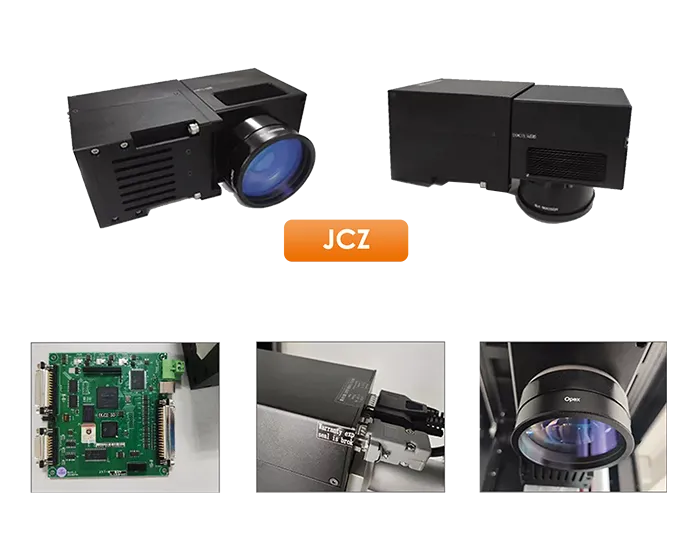

High speed motor, fast marking speed, precise focus control, ultra-low temperature drift, ultra long life

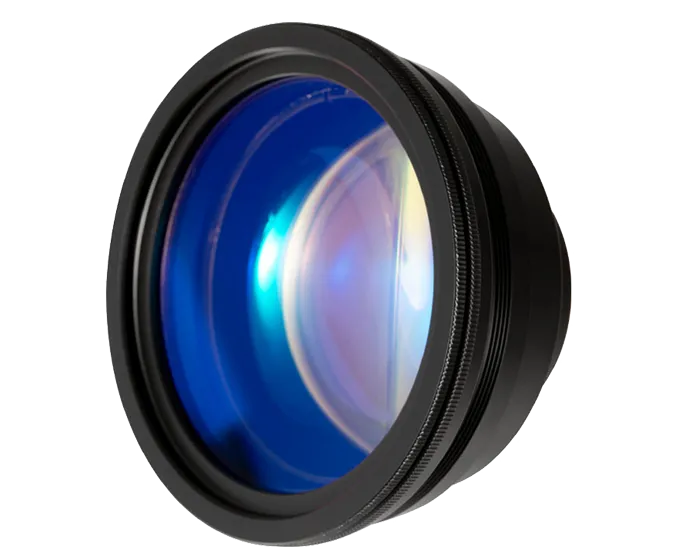

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Motorized Z axis

Motorized Z axis

No longer use manual rotation, we use switches to control the lift

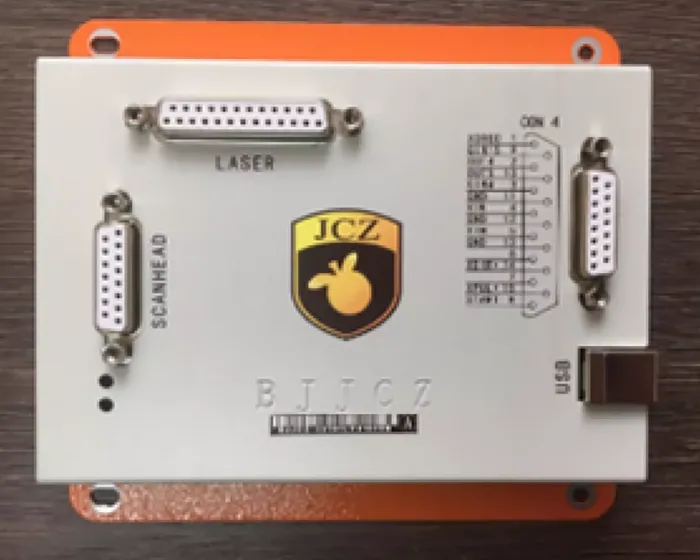

Genuine EZ CAD controller

Genuine EZ CAD controller

Each piece has a sole serial No. to check to avoid fake.

Newest version, more stable

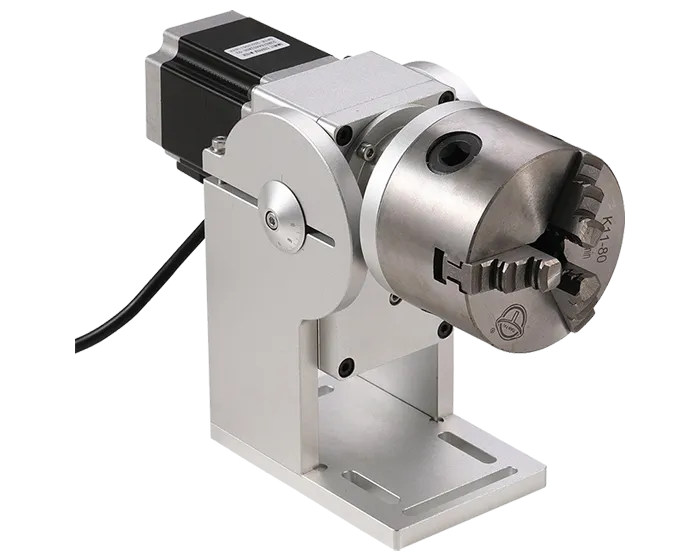

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Technical Parameters

Product Name

2.5D Fiber Laser Marking Machine

Cooling Mode

Air cooling

Model No.

VLF-30

VLF -50

VLF-60

VLF-80

VLF-100

VLF-120

Max Marking Speed

7000mm/s

Laser Source

Raycus

JPT

IPG

Mininum Line Width

0.015mm

Power

30W/50W

60W/80W

100W /120W

Mininum Character

0.2mm

Laser Wavelength

1064nm

Pulse Frequency

30KHz - 100KHz(Raycus)

1KHz - 4000KHz (JPT)

Marking Area

70*70mm,

110*110mm,

150*150mm,

175*175mm,

200*200mm,

220*220mm,

300*300mm.

Operation Environment

Working temperature: 0°-40°.

Storage temperature: -10°-60°.

Humidity: 30% - 85%.

Power Supply

AC110V/220V+10%

50HZ or 60HZ

Control Card

EZCAD3 from JCZ

Operation System

Win XP / 7 / 8 / 10

(64 bits)

Lifespan

80,000-100,000 hours

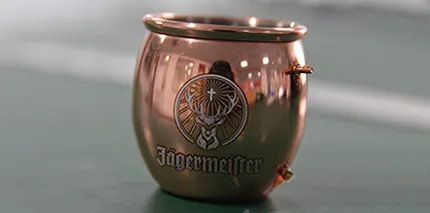

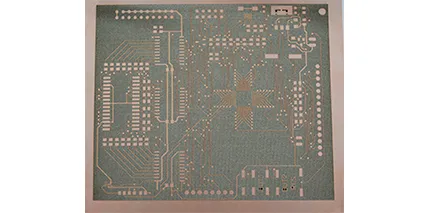

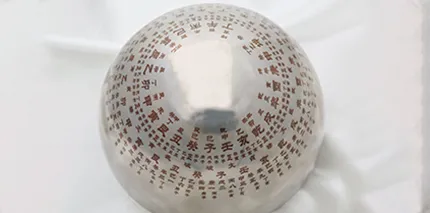

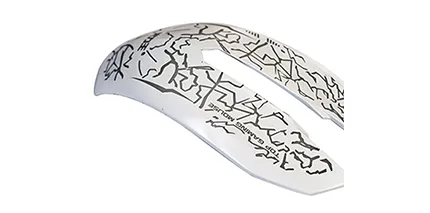

Application Industry

The machine can marking on all themetal materials and some of nonmetal materials.

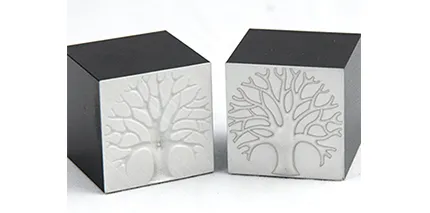

2.5D Fiber Laser Marking Machine

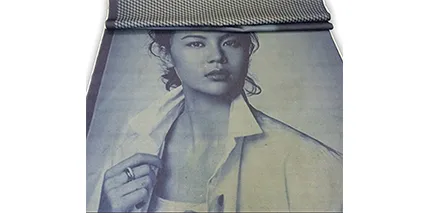

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine
