Mini Cover Fiber Laser Marking Machine

Inquire Now
4.9
(69)
$2,100.00
(Up To $7,900.00 for Top Version)
Home / Products / Laser Marking Machine / Fiber Series / Mini Cover Fiber Laser Marking Machine

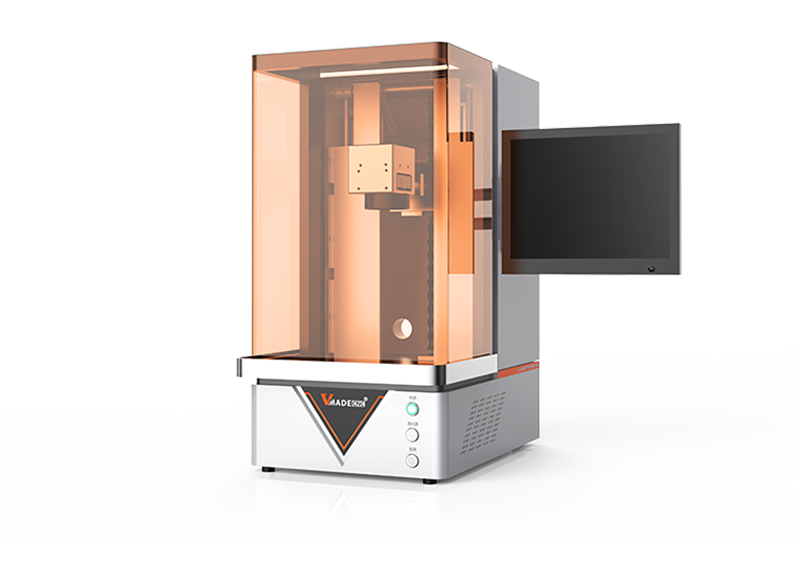

Mini Fiber Laser Marking Machine

Mini Fiber Laser Marking Machine is a small laser marking machine that uses fiber optic technology,which is commonly used to etch or mark logos, text, or designs onto a variety of materials, including gold, silver, copper, iron, stainless steel and nonmetal surface. Its compact size makes it ideal for use in small workshops or businesses with limited space. Mini fiber laser marking machine adopts a one-piece structure and is suitable for marking products of different sizes.



Main Features of Mini Cover Fiber Laser Marking Machine


1. The mini fiber laser machine has compact structure makes it very easy to move about (weighing about 120kg) and at the same time, it does not take space.

2. The mini fiber laser machine has a lifespan that can work up to 100,000 hours, this will yield a huge profit for you over the course of use.

3. The mini fiber laser marking machine is suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts.

4. The mini fiber laser machine has a marking speed of 8000mm/s can mark on materials at a fast rate and marks are permanent on whatever surface the laser beam comes in contact with.

5. Repeat Location Accuracy is up to ± 0.02mm

5. The marking depth of the mini fiber marking machine is 0.01mm, therefore making it deep enough to prevent fading overtime.

6. The small size of the fiber marking machine makes the power consumption low.  The electro-optic conversation rate is up to 60%. Power consumption is lowered by many times.

7. The mini fiber marking machine is environmentally friendly and energy saving.

If you are interested in our products, please contact us now!

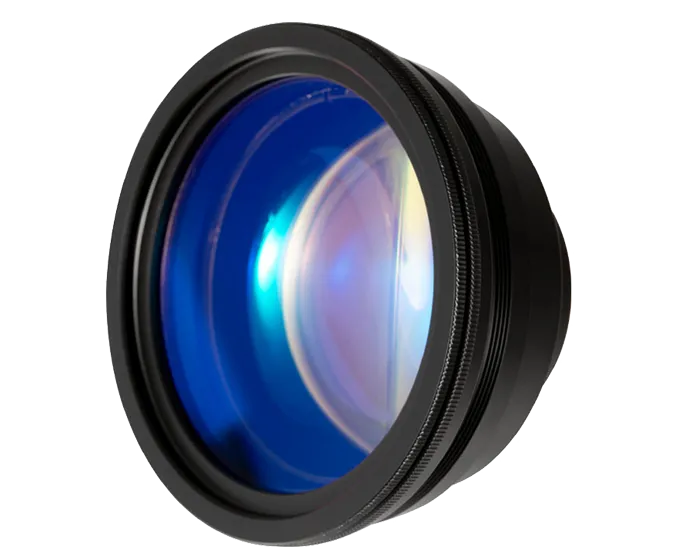

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

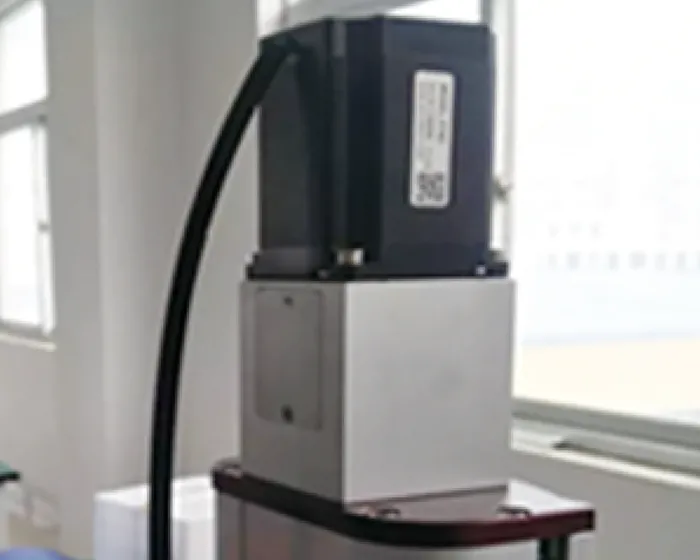

Motor Z axis lifting

Motor Z axis lifting

No longer use manual rotation, we use switches to control the lift

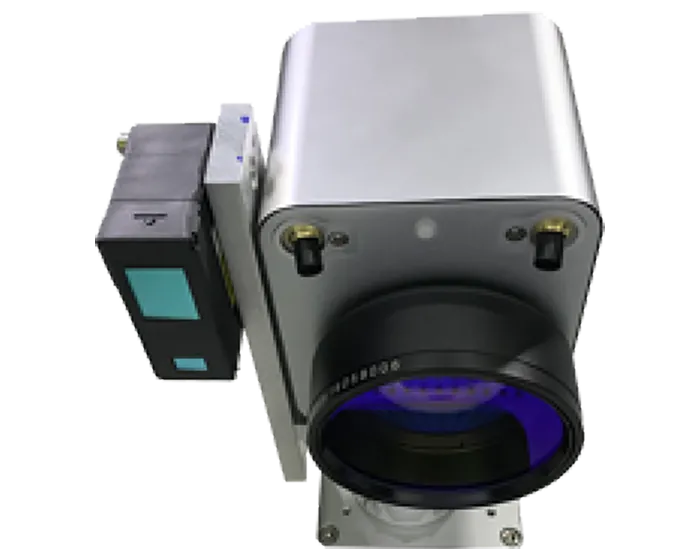

AUTO FOCUS

AUTO FOCUS

When we mark work-pieceswith different heightthe displacement transducer can Auto matically sense workpiece height.

The Galvo head will be up and down automatically no need movetheGalvohead by hand when marking workpieces with differ ent height.

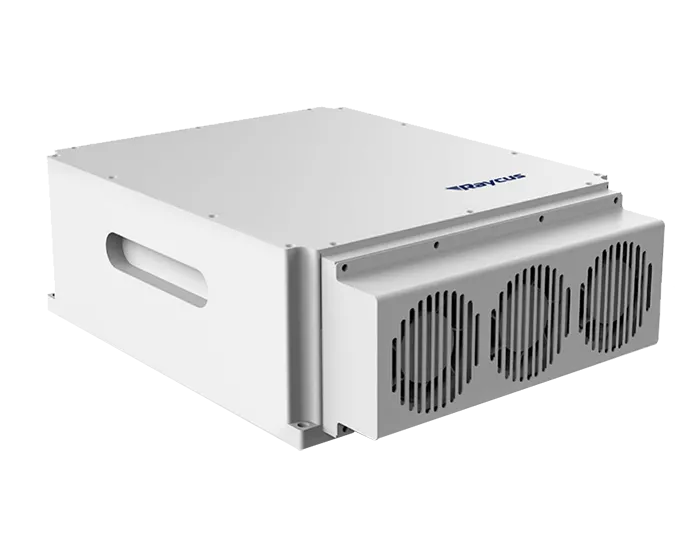

Raycus China best laser source

Raycus China best laser source

1.Highly stable laser output

2.High single-pulse energy

3.High marking efficiency

4.Short pulse setup time

5.High reliability

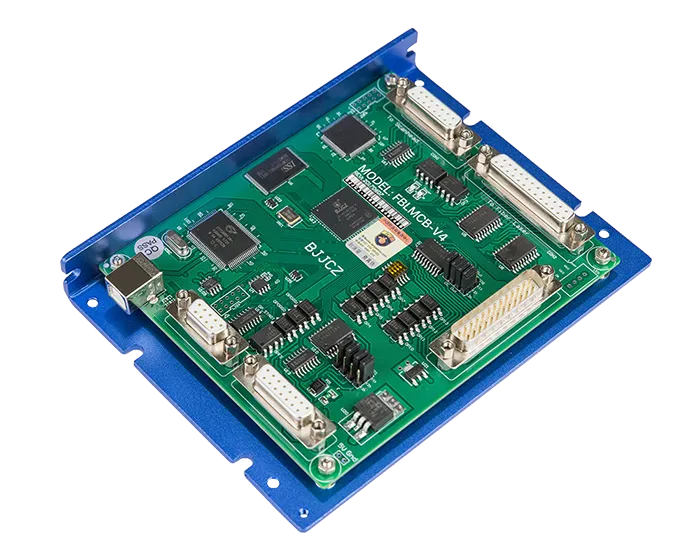

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

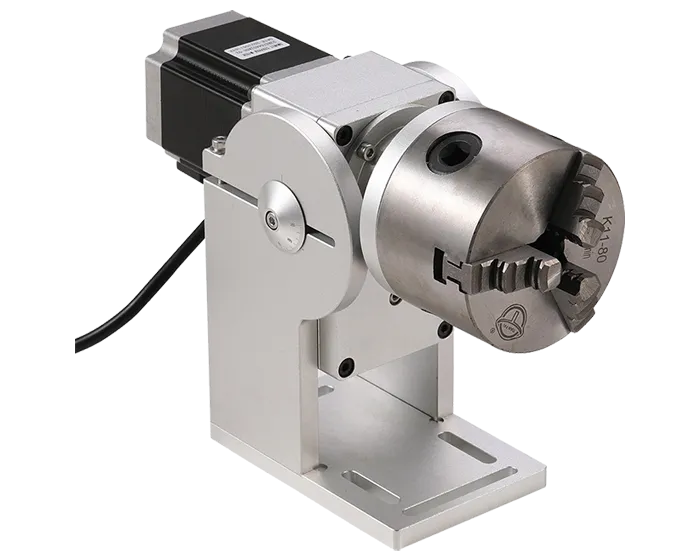

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Parameters of Mini Fiber Laser Marking Machine

ModelVLF-E-20W 30W 50W 60W 80W 100W
Lens size75/110/150/175/220/300 mm optional
Laser sourceRAYCUS/JPT/MAX/IPG
Galvo systemHigh quality Galvo scanning
Laser Power Control0-100% Software Controlling
Axial Speed8000mm/s
Repeat Location Accuracy± 0.02mm
VoltageAC110V 60HZ or AC220V 50HZ ±10%
Cooling SystemAir cooling
Min character0.1mm
Operate systemWindows XP/7/8/10
Format SupportPLT/DXF/AI/SDT/BMP/JPG/JPEG
SoftwareEzcad
Package sizeLength*width*height :1020*550*1060mm  Gross weight:120kg

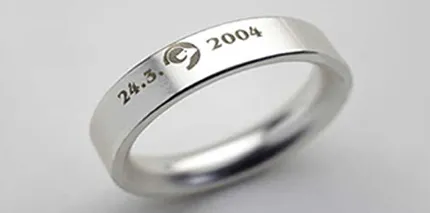

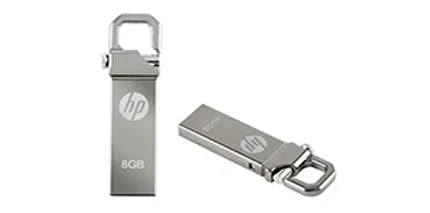

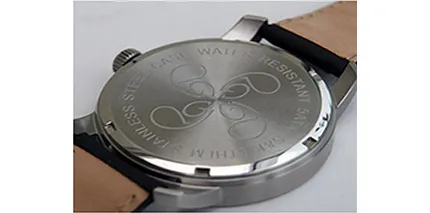

Application of Mini Fiber Laser Marking Machine

Mini Fiber Laser Marking Machine is suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic&Paper Materials, The Electron, Hardwarewhich with high request for depth, smooth, accuracy such ashorologe, Mould, bitmap marking etc.

Mini Cover Fiber Laser Marking Machine

Mini Cover Fiber Laser Marking Machine

Mini Cover Fiber Laser Marking Machine

Whole Cover Fiber Laser Cutting Machine
