UV laser marking machine price

UV Laser Marking Machine

A UV laser marking machine uses a high-powered ultraviolet laser beam to mark or engrave materials. The UV laser marking process involves focusing a beam of ultraviolet light onto the surface of the material being marked. The energy from the laser beam causes a reaction in the material, which produces a permanent mark.

VMADE UV Laser Marking System

Our UV laser marking system utilizes a distinctive pulse generation technology that allows for the adjustment of the laser pulse width, making it suitable for processing different types of materials with specific requirements. They are typically used for marking on plastics, glass, and other materials that are sensitive to high temperatures. Our UV laser marking machine adpots JPT/HuaRay/Inngu UV Laser Source, can produce 3W/5W/10W Laser power, high quality beam the ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone. Using electro-optic Q technology, output frequency can be up to 150khz, the pulse width less than 18 ns.


Features of UV Laser Marking Machines

*UV laser marking machines come with several features that make them ideal for a wide range of industrial applications. Here are some of the key features:

*Low heat output: UV lasers produce minimal heat during the marking process, reducing the risk of thermal damage to the material.

*Permanent marks: The marks produced by UV laser marking machines are permanent and resistant to fading, making them suitable for applications where durability is important.

*Environmentally friendly: UV laser marking machines use environmentally friendly processes that do not produce any hazardous waste or chemicals.

*Conduction cooled solid laser,small size, light weight.

*High quality light beam

Specification of UV Laser Markers

Laser source power

3W/5W/10W

Laser wavelength

355nm

Laser pulse width

3W<15ns@30khz, 5W<15ns@40khz, 10W<18ns@60khz

Laser frequency

20khz~150khz

Laser beam quality

1.2

Marking area

100x100mm, 150x150mm, 175X175mm, 200x200mm

Marking character

0.1 x 0.1 mm

Support computer

XP, WIN7, WIN8, WIN10

Control software

EZCAD

Control system

BJJCZ

Unit power

≤900W

Power supply

AC110V 60HZ or AC220V 50HZ

Cooling mode

Air cooling

Room temperature

-15 ~ 50 ℃

Gross weight

60kgs

Packing size

78x40x80cm

Applications of of UV Laser Marking Equipment

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhonecosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface metal surface coating, plastic buttons, electronic components, gifts, communication equipment, Building materials and other fields.

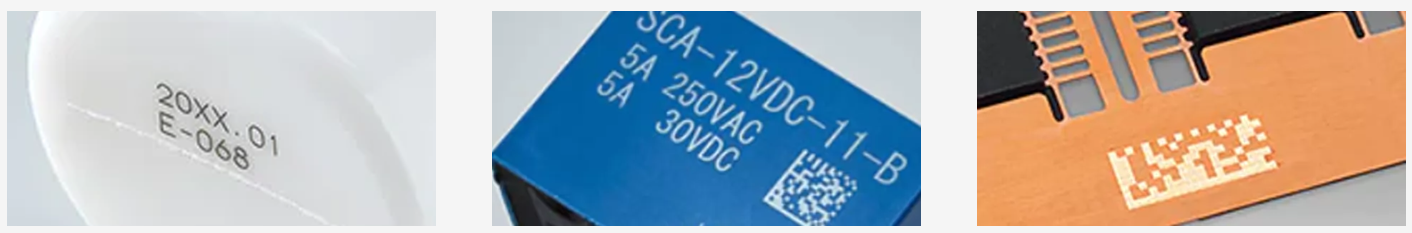

Marking Samples of UV laser marking machine

Marking Samples of UV laser marking machine

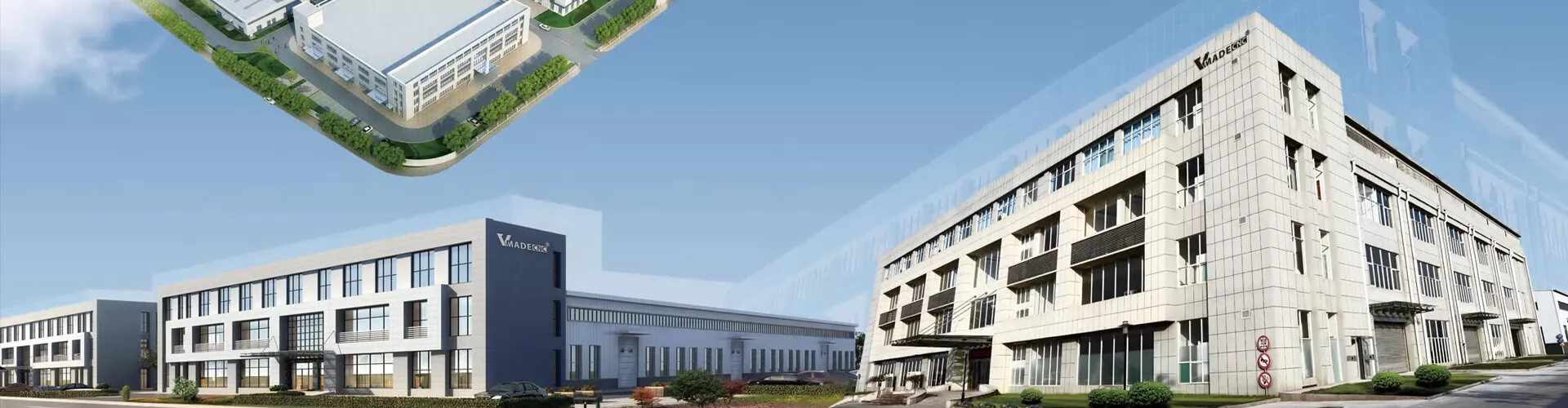

Industrial UV Laser Marking Machine Manufacturer


VMADE is a leading customized UV laser engravers supplier. We pride ourselves on providing high-quality, reliable UV laser marking machines that are tailored to your specific business needs. Our cutting-edge technology ensures that we can offer the best UV laser marking machines on the market, perfectly suited to meet the demands of your marking projects, plans, and ideas.


Whether you are based in the USA, UK, Germany, France, Netherlands, UAE, Canada, Australia, Russia, South Africa, China, India, or any other country in Asia, Europe, North America, South America, Africa, or Oceania, we can provide you with a UV laser engraver that meets your unique requirements.


At VMADE Laser, we are committed to delivering exceptional customer service, and our team of experts is always on hand to answer any questions you may have. We understand that investing in a UV laser engraver is a significant decision, and we are dedicated to helping you find the perfect machine to fit your needs.


Contact us today to learn more about our customized UV laser engravers and how we can help you take your marking business to the next level.

UV Laser Marking Machine Price Guide


UV laser marking machine price is a significant consideration when selecting a UV laser marking machine for your business. You may wonder, "How much does a UV laser engraver cost?" and "How can I determine the final price?"


The cost of a UV laser engraver can range from $3,000.00 to $20,000.00 or more, depending on the machine configuration. Several factors determine the price of a UV laser marker, including the marking software, engraving material, laser power, and other production parts.


To find the best and most economical solution for your marking needs overseas, you should consider additional fees such as customs clearance, tax, and shipping costs. It is crucial to factor in these expenses when calculating the final price.


At VAMADE, we understand that price is a crucial factor when investing in a UV laser engraver. That's why we offer a wide range of machines with varying configurations, allowing you to choose the best option to fit your budget and requirements.


Our team of experts is always available to assist you in selecting the perfect machine and calculating the final price, including any additional expenses. Contact us today to learn more about our UV laser marking machines and how we can help you find the perfect solution for your business.


UV Laser Marking Machine for Sale

The UV laser marking machine is a type of laser marking machine that utilizes a 355nm ultraviolet laser for its operation. This particular marking machine is designed with a third-order intracavity frequency doubling technology. In comparison to infrared lasers, the 355 UV light beam is highly focused, resulting in minimal mechanical deformation of the material and reduced heat impact during processing. As a professional UV laser marking machine manufacturer, we have a wide range of products for you to choose from: we offer Small SeriesPortable SeriesEnclosed Series to meet your rich marking needs.




UV laser marking machine price

FAQ about UV Laser Marking Machine:

Q: What is the difference between a CO2 laser and a UV laser marking machine?

A: CO2 lasers are typically used for cutting and engraving organic materials such as wood, paper, and fabrics, while UV lasers are used for marking and engraving inorganic materials such as metals, plastics, and ceramics.


Q: How long does a UV laser marking machine last?

A: With proper maintenance and care, a UV laser marking machine can last for many years.

Q: What maintenance is required for a UV laser marking machine?

A: Regular cleaning, alignment, and calibration of the laser system are essential to ensure optimal performance and longevity of the machine.


Q: How can I choose the right UV laser marking machine for my business?

A: When choosing a UV laser marking machine, you should consider factors such as the materials you will be marking, the required marking speed, and the size of the marking area. Our team of experts can help you select the best machine for your specific needs.
