About Whole Cover Fiber Laser Cutting Machine

VLF1530GA Whole Cover Fiber Laser Cutting Machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life. Equipped with fiber laser device of power from 1000w to 6kw. And the working area is from 3000mm*1500mm to 6000mm*2500mm. Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.


Benefits of VLF1530GA Whole Cover Fiber Laser Cutting Machine:

  1. Safety and No Pollution

  2. Competitive price and excellent configuration, can be designed according to customer's requirements.

  3. Robust mechanical structure

  4. Small footprint and high space utilization



Safety and No Pollution

Safety and No Pollution

-With a fully enclosed design;

-The observation window adopts an European CE Standard laser protective glass;

-The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

-The weight of machine is 7500kg.

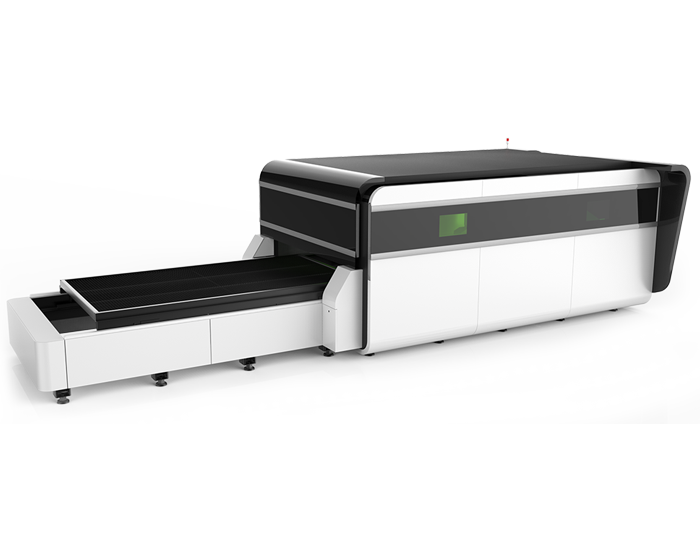

Exchanging Platform

Exchanging Platform

-It adopts an up and down exchange platform;

-The converter is responsible for controlling the exchanging motor;

-The machine is able to finish the platform exchanging within 15s.

The Fourth Generation Aviation Aluminum Gantry

The Fourth Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

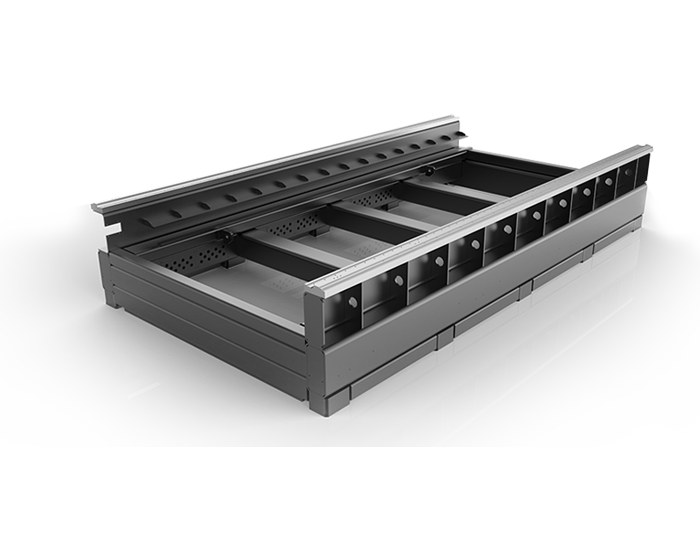

The Segmented Rectangular Tube Welded Bed

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

-High strength, stability, tensile strength, ensuring 20 years of use without distortion;

-Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

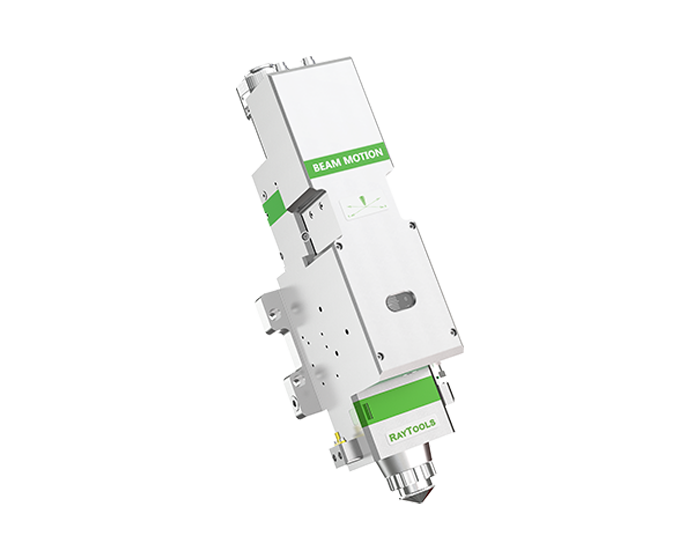

Without manual operation, it can focus automatically

Without manual operation, it can focus automatically

-Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

-Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

-Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Technical Parameters

Machine modelVLF1530GAVLF2040GAVLF2560GA
Laser power1000W 2000W 3000W 4000W 6000W(Optional)
Dimensions8150*2825*2125mm10750*3350*2310mm15000*4018*2755mm
Working area3000mm*1500mm4000mm*2000mm6000mm*2500mm
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Max. acceleration1.5G
Voltage and frequency380V 50Hz/60HZ

The above Specification is provided by our engineers, if you need more technical guidance, please contact us immediately.


Application Industry

VLF1530GA Whole Cover Fiber Laser Cutting Machine can carry up to 6000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use fiber laser cutting machine(1000w-6000w) for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
