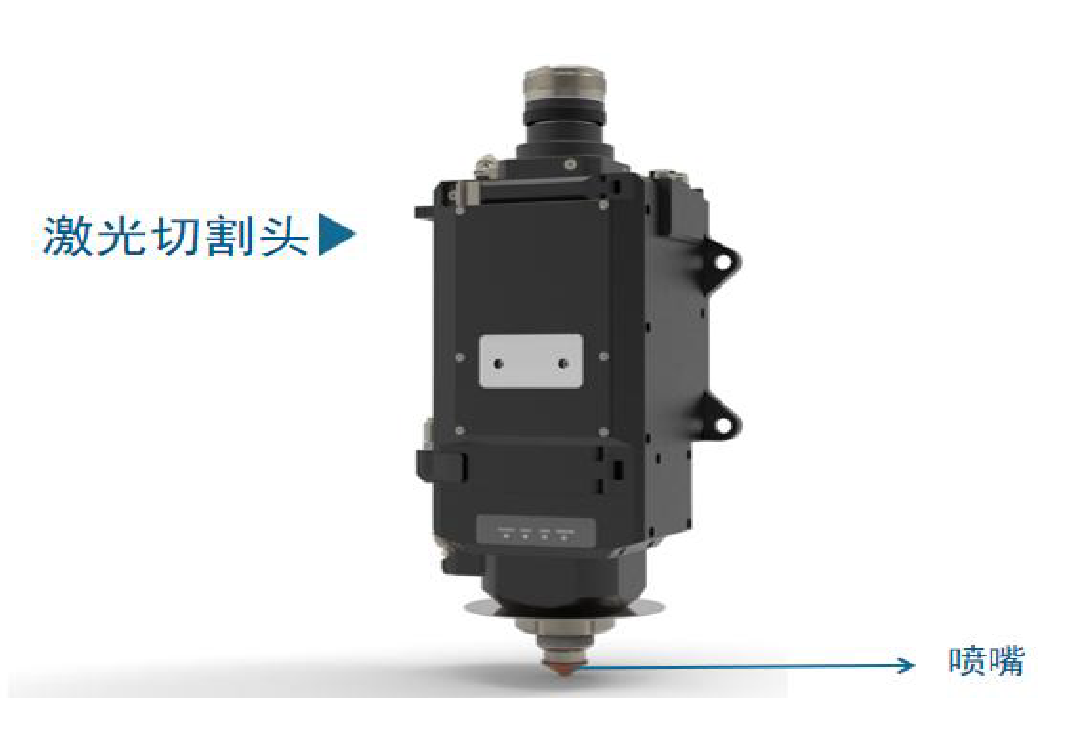

Although it is a seemingly small part, its function is not small. It is necessary to resist the upward rebound of debris such as melting stains, and to control the gas diffusion area and size. Therefore, the quality of the nozzle is an important factor in determining the quality of the cutting. One of the factors, so we will talk about how to choose the "nozzle".

Q1:Is there a big difference between nozzles of different quality?

A: The difference is very big because the material and precision of the nozzle play a decisive role in the conductivity, heat conduction effect, difficulty of debugging, and the protection of the laser head. A good nozzle can protect the optical lens inside the cutting head and release the auxiliary gas to the surface of the cutting material, guide the gas to assist the cutting, and take away the slags and burrs, leaving a clean cut profile, so the quality of the nozzle directly affects the life of the cutting head and the quality of the cutting workpiece.

Generally speaking, the price of the original nozzles of the cutting head is relatively high, which also makes the nozzles sold by third parties very popular, but not every third-party manufacturer has the production capacity of such consumables. In recent years when the price war of fiber lasers has been fierce, the prices of laser accessories have also become lower and lower. Blindly pursuing low prices while ignoring quality

will not be worth risking.

Q2:What are the consequences if the selectionis improper?

If the nozzle is not designed and maintained properly, and the processing accuracy is not stable, the flow rate of the gas will be weakened, and the direction of the airflow will become unstable, which will affect the melting of the material during the cutting process and cause melt stains. Cutting thicker plates may even result in failure to cut.

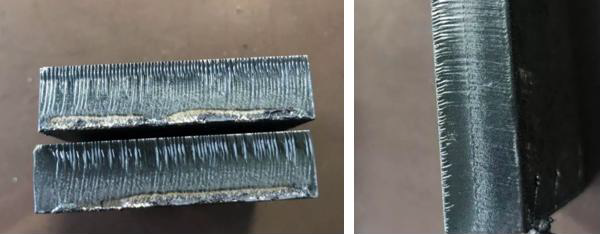

-Nozzle selection too large-

The upper stripe and the lower drag line are rough (left)

The upper stripe is rough with teeth shape groove(right)

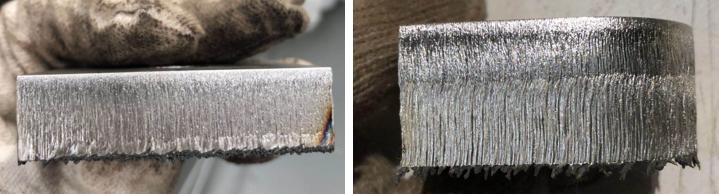

-Nozzle selection too small-

Insufficientcutting(left) Cut layers emerges(right)

Q3: What types of nozzles are there?

There are currently two main types of nozzle designs: "low speed nozzles" (gas speed less than the speed of sound) and "high speed nozzles" (gas speed close to the speed of sound). Factors affecting nozzle performance are cutting head cavity air pressure, nozzle diameter, nozzle internal shape and nozzle outlet shape.

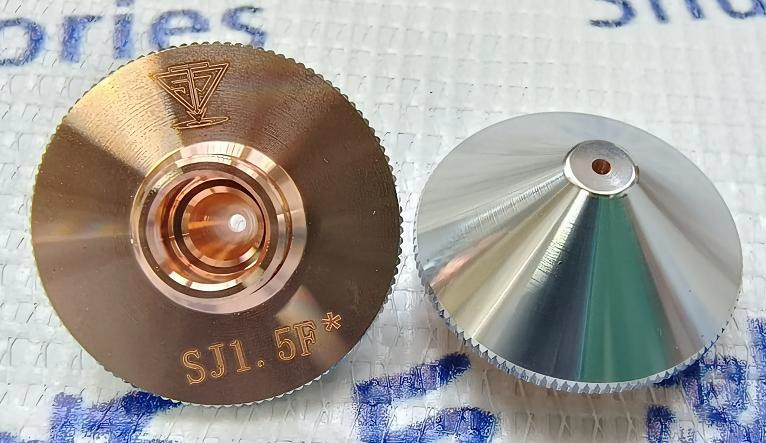

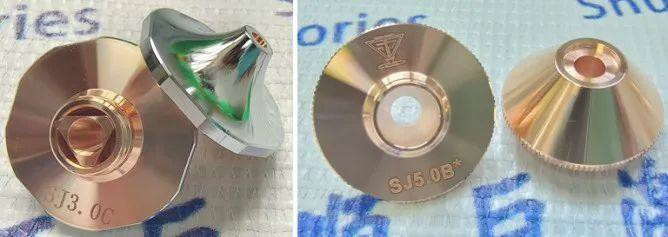

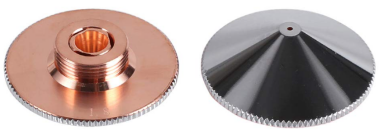

High-speed double-layer nozzle and storm single-layer nozzle

The working principle of the high-speed nozzle is the same as the exhaust principle of rockets and jet engines, which accelerates the gas entering the nozzle, so the high-speed nozzle can produce better results for cutting viscous materials.However, if an ordinary low-speed nozzle is used, the air pressure on the surface of the workpiece will fluctuate greatly with the change of the cutting height, resulting in an unsatisfactory cutting effect.

Q4: How to choose anozzle?

It can be selected from the following aspects:

Processing requirements: single-layer nozzles used in laser equipment are mainly used for nitrogen cutting of stainless steel and aluminum plates; double-layer nozzles are mainly used for oxygen cutting of carbon steel.

Material: There are two commonly used materials for nozzles - copper and brass. The electrical conductivity and thermal conductivity of copper are better than that of brass.

Size: The diameter of the nozzle determines the flow rate of the gas and the shape of the gas field. Generally, when cutting a thin plate below 3mm, it is recommended to use a nozzle with a diameter of 1mm, while for a sheet above 3mm, it is recommended to choose a nozzle with a diameter of 1.5mm. The recommended diameter for cutting a sheet above 10mm 2mm or more nozzles.

Processing accuracy: A good laser head nozzle  should have a concentricity of 0.03mm, and a nozzle with a size below 1.0mm should have a concentricity of 0.02mm. The high-precision concentricity nozzle can not only reduce the pre-adjustment in the processing process, but also effectively prevent the high-energy laser from hitting the inner wall of the laser head, thereby avoiding damage to the laser head.

-Common nozzle introduction-

NAME	SYMBOL	SHAPE	FEATURES	USAGE

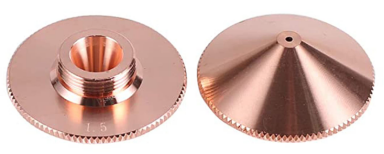

Single layer	S		The inner wall is conical The large flow rate of high-pressure gas blowing slag	Stainless steel, aluminum plate, and other  materials fusion cutting

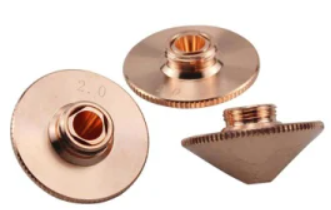

Double layer	D		Double layer composite The inner core is added on the basis of a single layer	Double layer 2.0 size and above is used for Carbon steel sand surface cutting

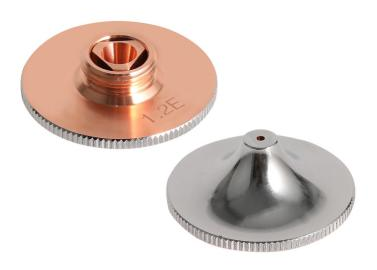

High-speed double layer	E		The shape of the nozzle is pointed The three holes on the edge of the inner core are larger than ordinary	Mainly used within 20mm Carbon steel high power high-speed mirror surface cutting

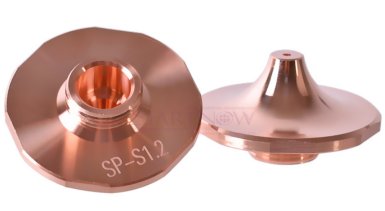

High speed double layer	SP		The shape of the nozzle is pointed The inner wall is stepped conical	Mainly used for thicker than 20mm Carbon steel high power high-speed bright surface cutting or oxygen negative focus point cutting
High speed double layer	ST		The shape of the nozzle is pointed The inner wall is conical Nozzle area is larger than SP	Mainly  used  for thicker than 20mm High-speed bright cutting of carbon steel Follow more stable, the effect is better
Storm nozzle	B (boost)		Improvement on the basis of single-layer nozzle The nozzle mouth has a step	Available for high-power nitrogen or air Low Air Pressure Cutting Stainless Steel and Carbon Steel

Q5: How to install and debug the nozzle?

Nozzle installation steps

1. Unscrew the nozzle;

2. Replace with a new nozzle and re-tighten it with appropriate force;

3. After replacing the nozzle, the capacitance calibration must be done again. Take the BOCI 12kW cutting head as an example, the focal point is matched with the nozzle (0 focal point must be calibrated):

DOUBLE LAYER 1.2E: CUTTING 3MM-12MM CARBON STEEL PLATE, FOCUS BETWEEN 5-11 DOUBLE LAYER 1.4E: FOCUS 9-14

DOUBLE LAYER 1.6E: FOCUS 11-16 DOUBLE LAYER 1.8E: FOCUS 13-18 SP SINGLE LAYER 1.2: FOCUS 8-13

SP SINGLE LAYER 1.4: FOCUS 10-15

SP SINGLE LAYER 1.6: FOCUS 12-17

SP SINGLE LAYER 1.8: FOCUS 14-19

-COMMON NOZZLE RECOMMENDATION-

The quality of nozzles in the market today is uneven. When purchasing, it is recommended to carefully screen according to the above content and purchase through regular channels.
