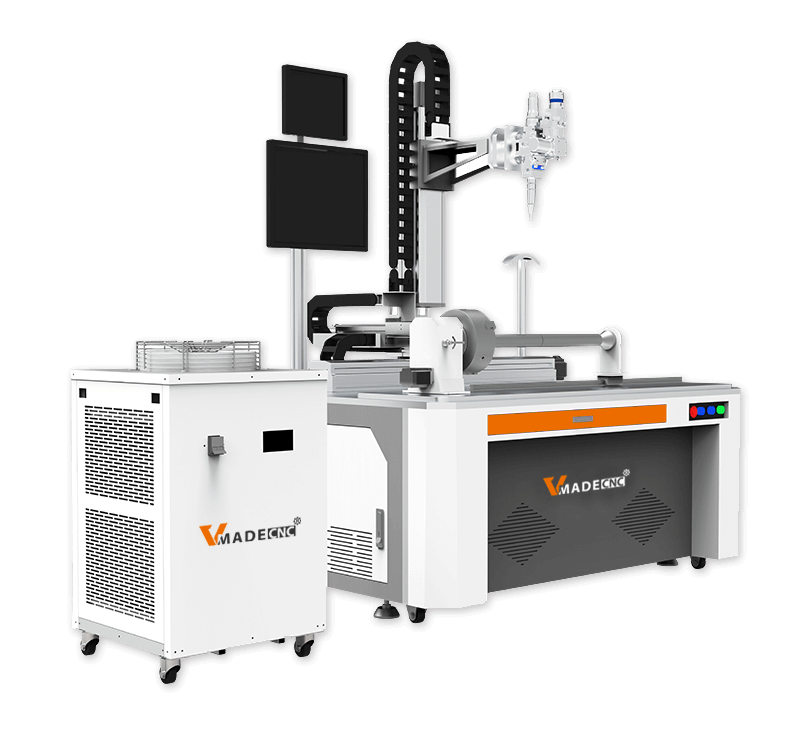

Automatic Laser Welding Machine

Welding Series

Automatic Laser Welding Machine

Inquire Now
Home / Products / Smart Welding/Cleaning/Cutting Machine / Welding Series / Automatic Laser Welding Machine

1.  This welding head has strong advantages in aluminum alloy welding and medium power welding applications, and it is a cost-effective welding head.
2.  The welding head uses a motor to drive the X, Y axis vibrating lens, with a variety of swing modes, and the swing welding allows the workpiece to have irregular welds, larger gaps and other processing parameters, which can significantly improve the welding quality.
3.  The internal structure of the welding head is completely sealed, which can prevent the optical part from being polluted by dust.
4.  The protective lens adopts a drawer type structure, which is easy to replace.
5.  It can be equipped with various lasers with QBH connectors.

Welding Head

Welding Head

he welding head uses a motor to drive the X and Y-axis vibrating lenses, with multiple swing modes, and the swing welding allows the work piece to have irregular welding, larger gaps and other processing parameters, which can significantly improve the welding quality.

he internal structure of the welding head is completely sealed, which can prevent the optical part from being polluted by dust.

Automatic welding

Automatic welding

Automatic laser welding machine has two welding modes Customers can choose between wire feeding or non-wire feeding

according to their own products. The switching is simple and practical.

JPT Laser

JPT Laser

We use advanced fiber lasers with a service life of more than 10w hours, low energy consumption, low failure rate, flexible fiber up to 10-15m, flexible and convenient, outdoor welding, equipped with a hard protective layer.

Water cooler

Water cooler

Environmentally friendly refrigerant, perfectly compatible with all lasers

Stable and reliable performance, low failure rate, energy saving and power saving

Technical Parameters

Technical index

Technical Parameters

Laser power

1000W

1500W

2000W

Laser wavelength

1080±10nm

XYZ Working stroke

1000*400*500mm

X/Y/Z Axis
positioning accuracy

±0.025mm

X/Y/Z Axis
Repositioning accuracy

±0.02mm

Laser working method

CW/Modulated

Width of galvanometer

Line 0.5-6mm/ Circle 2mm

Thickness of welding material

≤4mm

≤6mm

≤8mm

Welding gap requirements

≤0.3mm

Voltage

380V±10%

Total power

≤8kw

≤10kw

≤12kw

Gross weight

700kg

800kg

900kg


Application Industry

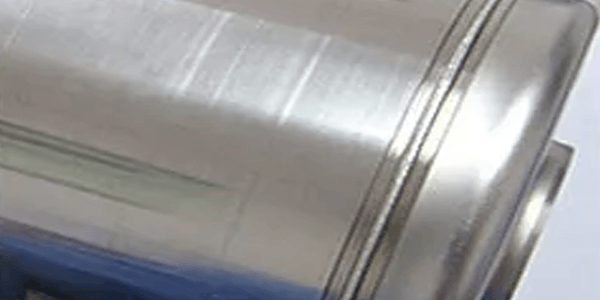

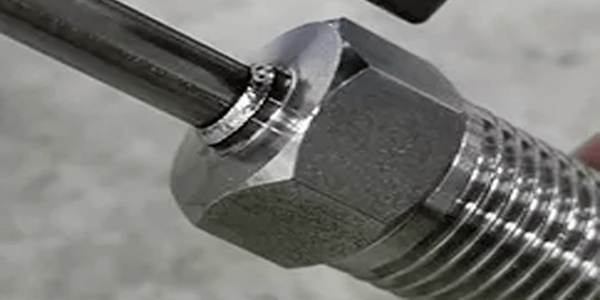

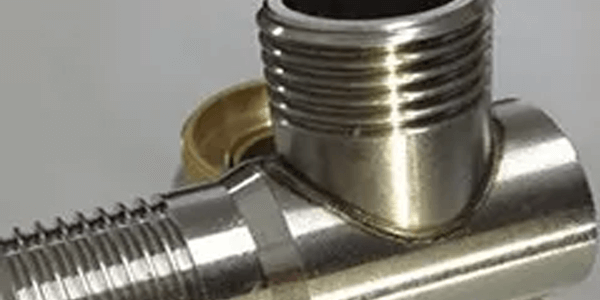

Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials, cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, Stainless steel household and other industries.
