Handheld Fiber Laser Welding Machine

Handheld laser welder replaced traditional welding methods TIG and MIG welding.

The laser provides contact-free, high-speed metal welding solutions for advanced manufacturing.

Welding is conducted by melting the metals to create a high-quality weld.

The filler material may be required (as TIG welding).

The laser beam is tightly focused, heat input is minimized, and parts can be handled almost immediately.

Handheld fiber laser welding machine is mainly composed of a laser unit and a welding unit, while taking into account the flexibility, efficiency and high weld quality of laser welding. It can effectively weld carbon steel, stainless steel, galvanized sheet and other metal materials, suitable for tailor welding, stitch welding, inner and outer fillet welding, arc welding, and irregular shape welding.

Advantages of Handheld Fiber Laser Welding Machine

1. High welding efficiency:

The welding speed of Handheld Fiber Laser Welding Machine is 3-10 times that of traditional MIG & TIG Welding; the welding heat affected area is small, which will not cause problems such as co-construction deformation, blackening, and traces on the back, and the welding depth is large, melting Full, solid welding.

2. Easy to operate

The handheld laser welding machine is easy to learn and easy to use, and can be employed without professional training, and the operator can easily achieve high-quality welding results. The convenient and fast operation experience helps enterprises solve the problem of welder recruitment.

3. Good welding effect

Handheld fiber laser welding machine is thermal fusion welding. Compared with traditional welding, Handheld fiber laser welding machine has higher energy density and can achieve better welding results. Continuous welding, smooth without fish scales, beautiful without scars, reducing the subsequent grinding process.

Three-in-one portable laser welder

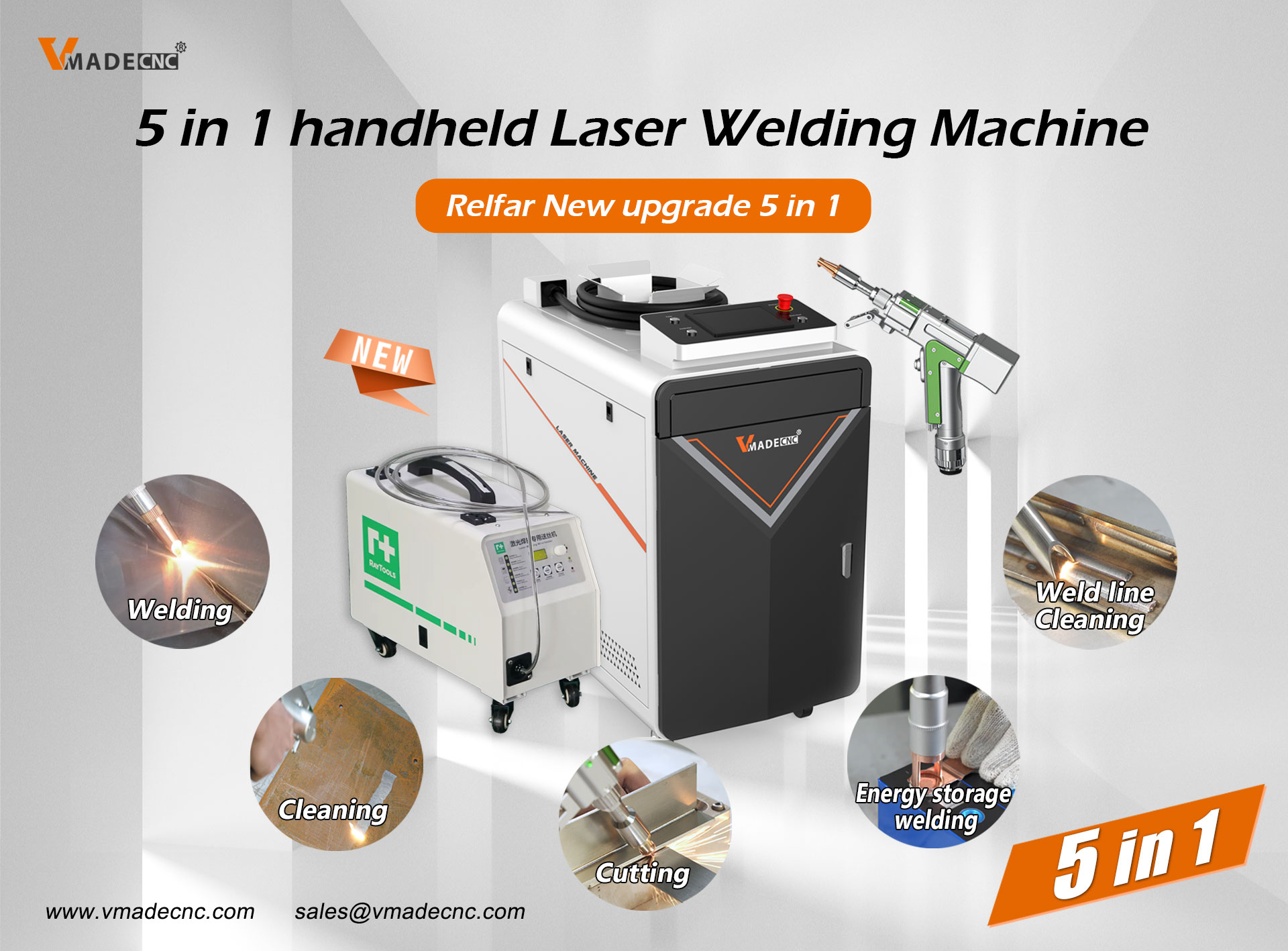

Latest upgrade 5-in-1 details please click: https://www.vmadecnc.com/news/5-in-1-handheld-laser-welding-machine.html

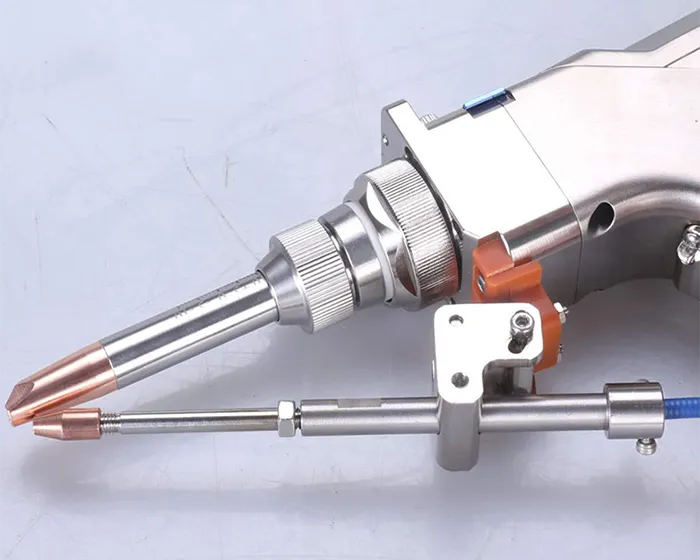

Wobble Welding Head

Wobble Welding Head

Hand-held swing welding mode, light and flexible.Interactive control system; makes the light spot larger, the welding seam better formed. Lighter weight, ; ergonomic design can be equipped with a variety of angle nozzles to meet the welding needs of different products.

360 Degree Welding

360 Degree Welding

After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. Mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.

Parameters of Handheld Fiber Laser Welding Machine

Machine ModelHand-held fiber laser welding machine
Laser Power1000W 2000W 3000W(optional)
laser wave length1070 NM
Fiber lengthStandard10M / Maximum 15M
Welding speed range0~120 mm/s
Cooling chillerIndustrial water chiller
Working environment temperature range15~35 ℃
Welding thickness recommendations0.5-3mm
working voltage220 V


Aluminium Alloy2.5MM3MM4MM
Stainless Steel4MM5MM6MM
Carbon steel4MM5MM6MM
Mild Steel4MM5MM6MM

If you need more technical guidance, please download parameters from here, or contact us for help immediately.

Application of handheld fiber laser welding machine

The handheld fiber laser welding machine widely used in cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furnishings and other industries.
