Low Power Handheld Pulsed Laser Cleaning Machine

Cleaning Series

Low Power Handheld Pulsed Laser Cleaning Machine

Inquire Now
Home / Products / Smart Welding/Cleaning/Cutting Machine / Cleaning Series / Low Power Handheld Pulsed Laser Cleaning Machine

Low Power Pulsed  Laser Cleaner uses pulsed fiber lasers for applications that require very low impact on the substrate of the material.

10W, 30W, 50W, 80W, 100W, 150W, 200W, 500W, 1000W are available for various applications like paint, rust, old, coating, film removing for mold, engine, cultural relic. etc.

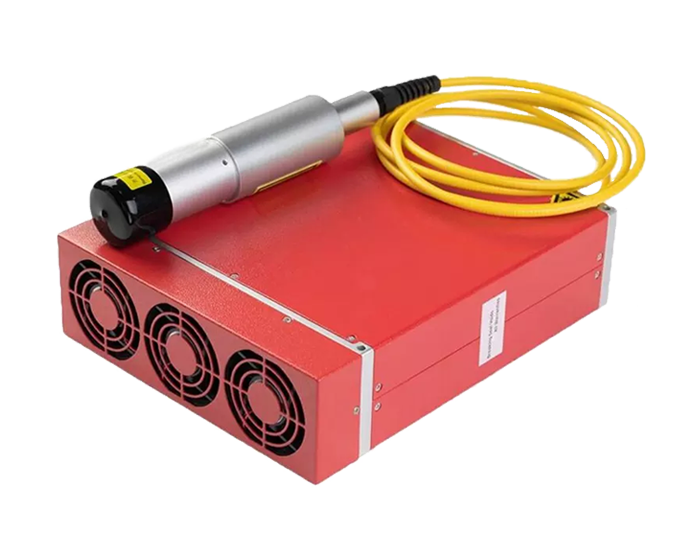

FIBER-OPTIC LASER

FIBER-OPTIC LASER

The quality of the laser determines the quality of the handheld laser cleaning machine.

The service life is more than 10w hours, the energy consumption is small, the failure rate is low, the flexible optical fiber is 5-20m, it is flexible and convenient, it can realize outdoor welding, and it is equipped with a rigid protective layer.

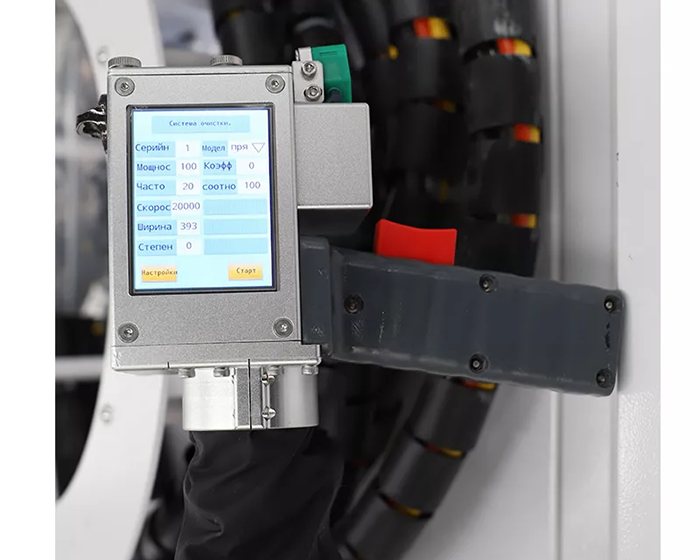

Hand-held laser cleaning head

Hand-held laser cleaning head

Ergonomic design, reduce labor intensity; integrated head cleaning operation screen, parameters can be adjusted directly by the operating screen; made of aluminum, having good shock effect and stability.

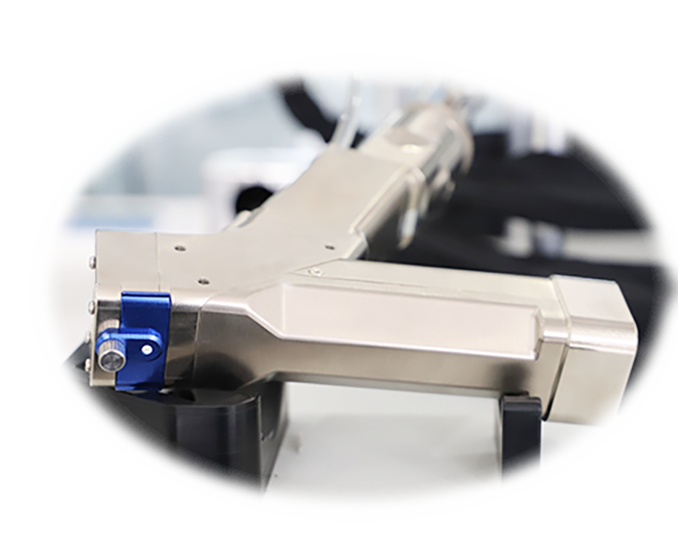

HANDHELD LASER CLEANING HEAD

HANDHELD LASER CLEANING HEAD

To solve the limitation of the worktable's stroke space, touch switch control, integrated design, compact structure, and ready to use when powered on.

The gun head is made of aluminum profile, with good shockproof effect and high stability.

The front support frame can be equipped with dust removal pipes to achieve precision and clarity.

The light width and galvanometer speed can be adjusted directly through the button.

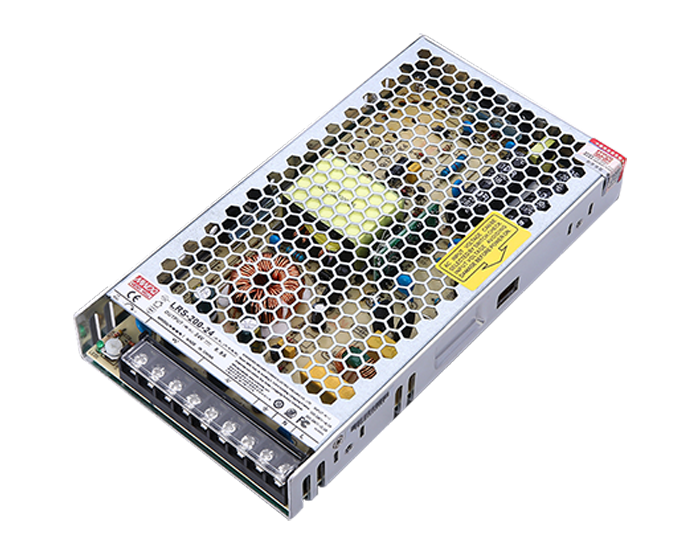

TAIWAN MEANWELL POWER

TAIWAN MEANWELL POWER

Ensure the stable operation of the handheld laser welding machine, more safe, prolong the service life of the laser cleaning machine.

HANLI WATER CHILLER

HANLI WATER CHILLER

The special water cooling machine for laser rust removal machine, ensures the stable operation and safety of the Laser cleaning equipment.

Technical Parameters

Item No.

Pulse Cleaning Laser

Laser Power

100w

200w

300w

Laser Wavelength

1064nm

Pulse Energy

1.5mJ

12mJ

15mJ

Fiber Length

5m (Optioned)

Laser Cleaning Head Weight

1kg

Scanning Width

10-80mm

Voltage

220V, 50/60Hz

Cooling Method

Air-cooling

Working Temperature

0-40℃


Application Industry

Fiber laser cleaning machine is used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning.

Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.

Low Power Handheld Pulsed Laser Cleaning Machine

Low Power Handheld Pulsed Laser Cleaning Machine

Low Power Handheld Pulsed Laser Cleaning Machine
