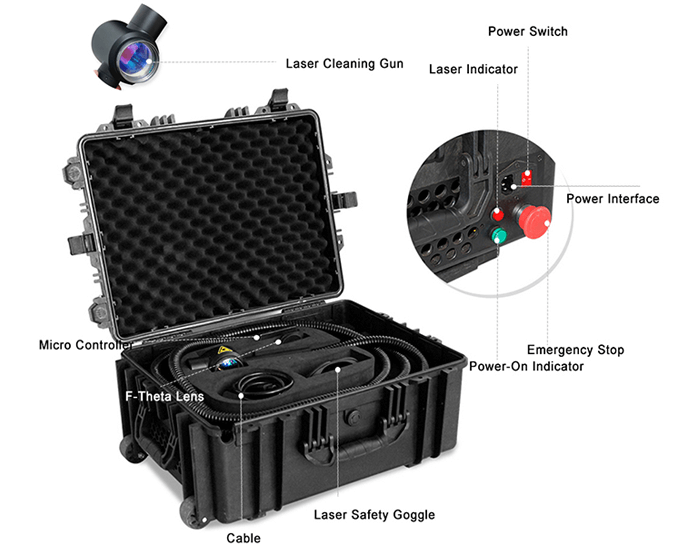

Machine Features

Machine Features

The laser cleaning machine relies on the advantages of the MOPA structure anditadopts100watts JPT brand pulsed fiber laser source as the cleaning light source.

This MOPA type fiber laser source has the characteristics of independently adjustable pulsed width and frequency.

It can maintain a high and stable peak laser power output even when the pulse width and frequency are changed to adapt to a wide range of cleaning situations.

The portable laser head is small and light-weight,it can be used for a long time.

The button and handle are integrated design,it's very easy to use.

It has portable and integrated design,super integrated injection molding body, slow down attacking design, it is compressive,anti-drop and wear-resistant.

It adopts draw-bar box design,can be carried easily for high-speed railway or air shipment.

HANDHELD LIGHTWEIGHT FLEMIBLE

HANDHELD LIGHTWEIGHT FLEMIBLE

Any workpiece can be easilyrust removal Safety protect.Double-click to start work.

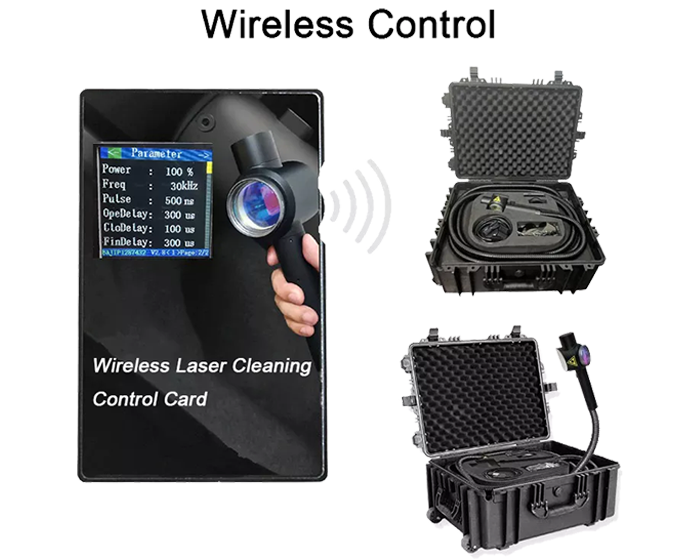

INTELLIGENT CONTROL SYSTEM

INTELLIGENT CONTROL SYSTEM

Remote control parameters Small and convenient

The parameters can be set in advance and then

imported and used Power parameters can be adjusted

Technical Parameters

Model

Fiber Laser Cleaning Machine

Laser source

JPT fiber laser

Laser power

100W

Supply voltage

Single-phase 220V±10%, 50/60Hz AC

Machine power consumption

2500W(within water chiller)

Output working method

Pulse/continuous

Output armor cable length

5m

cooling method

Air-cooled

Supply voltage

220V

Maximum power consumption

450W

Whether anti-high reflection

yes

Storage temperature range

10-60℃

Washing machine size

617*469*291mm

Package dimensions

750*580*500mm

weight

Net weight 28Kg     Gross weight 46Kg

Laser head weight

0.62Kg

Place of origin

Shenzhen China(Mainland)

Guarantee

1 year

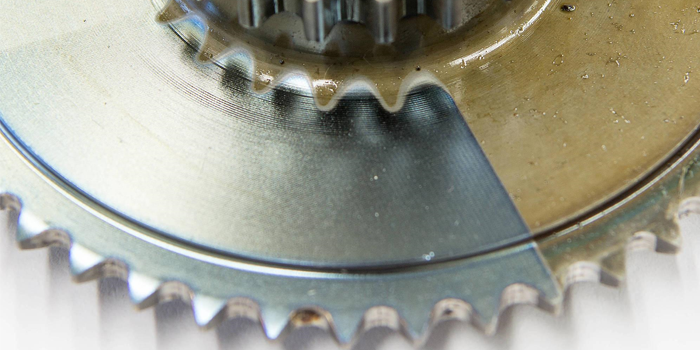

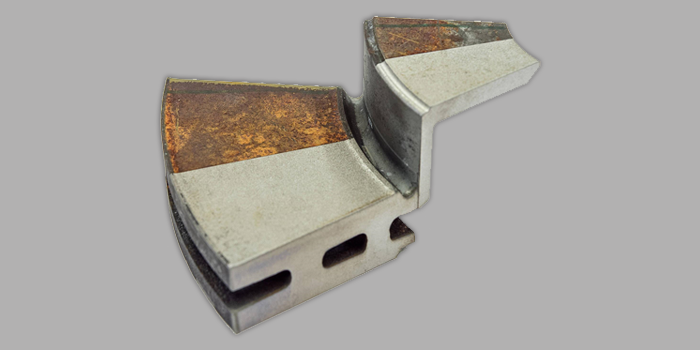

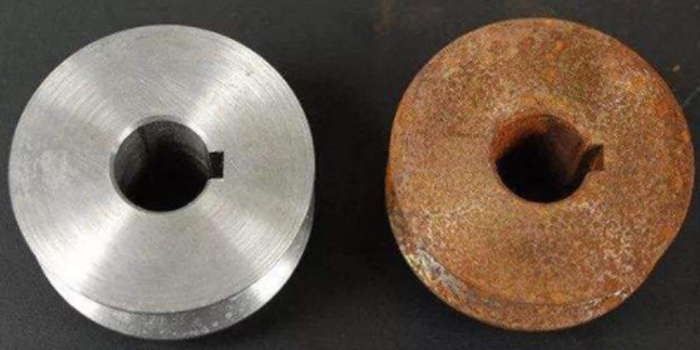

Application Industry

Applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits and other industries.

With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.
